Automatic Cutting Machine 650 mm Auto
For diamond saw blades up to 650 mm dia (I60-12370..).

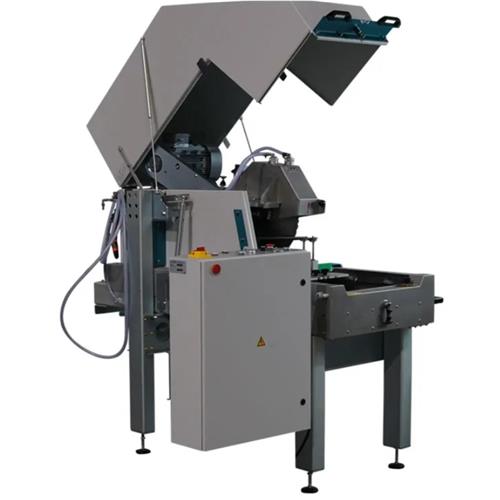

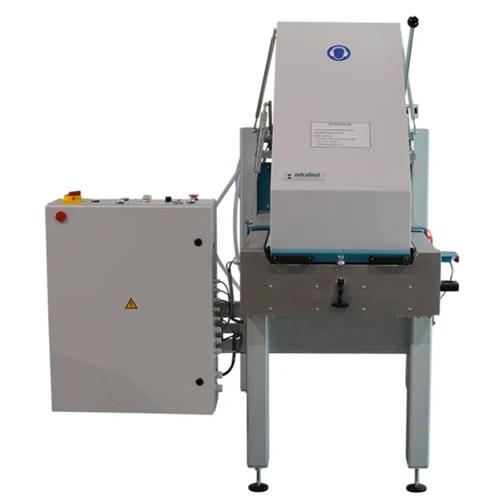

Floor mounted rigid steel frame with hinged cover and viewing window, protected with safety switch.
The movable sample table is equipped with motor and variable speed.
.
After fixing the samples the whole operation is done from outside.

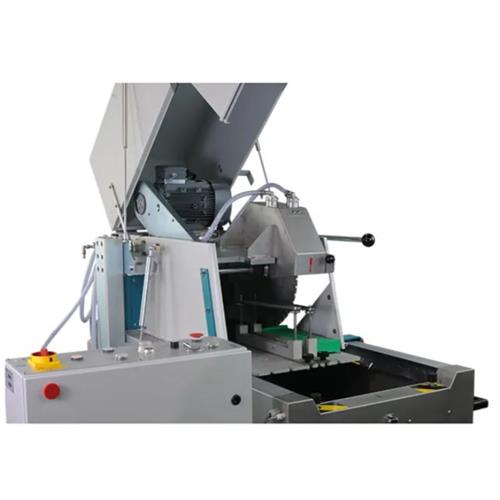

The cutting head is adjustable in height and enables the installation of one or two saw blades in variable distance from 25 to 60 mm.

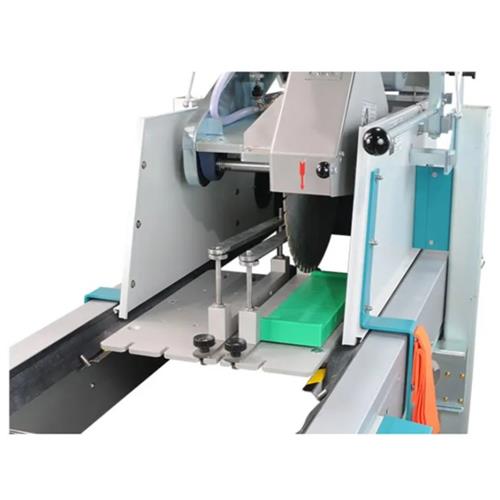

The sample table is roller guided and prepared to install various sample holding brackets f. e. for the preparation of prismatic samples.
Supplied with installation for cooling water to be connected to continous runining town water supply.
Excludes
-Diamond saw blades
-Sample brackets.
Dimensions approx.: 1400 x 2000 x 1950 mm
Weight approx.: 900 kg
Electric data: 3/N/PE, 400 V, 50/60 Hz
