DIN EN 14771, NF T 66-062, ASTM D 6648, AASHTO T 313

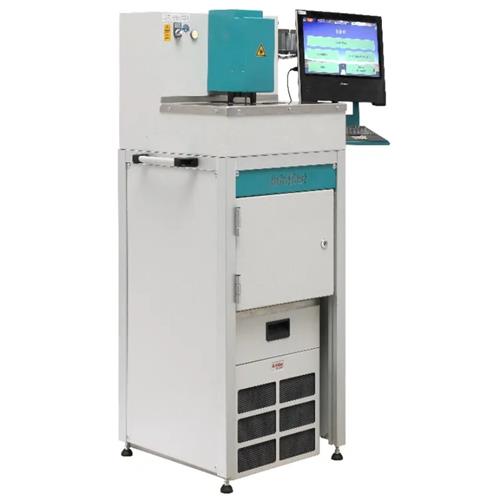

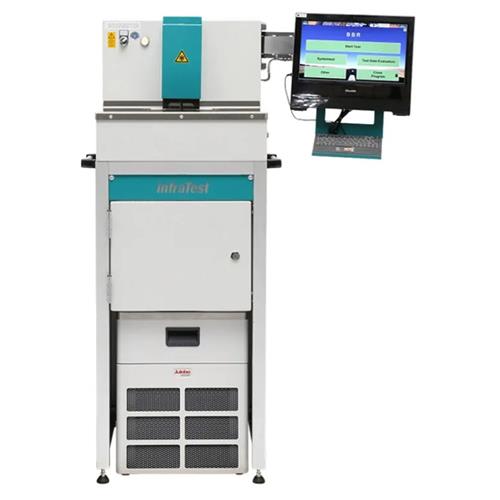

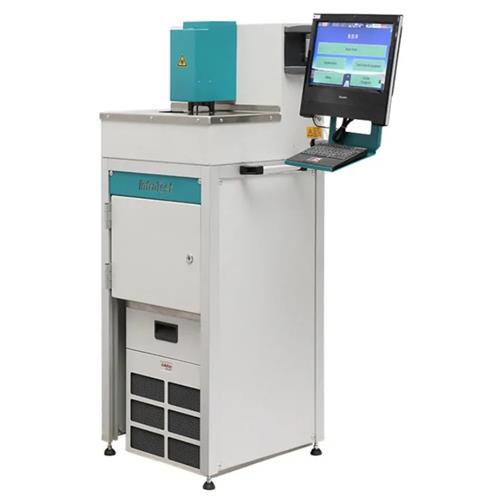

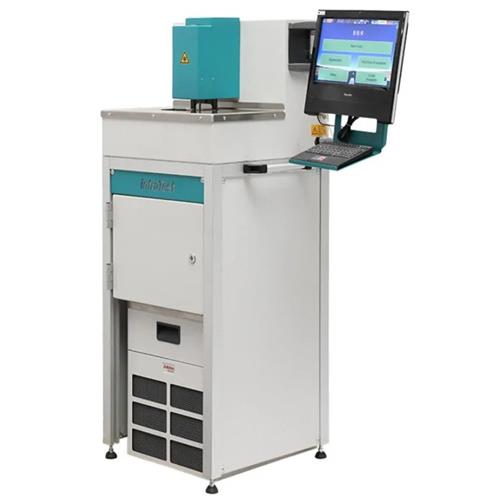

Test System for Determination of Flexural Creep Stiffness of Asphalt Binder at low temperatures
The flexural strength, among other things, is determined in order to evaluate the behaviour of asphalt binder and similar products at low temperatures.
The deflection of the specimen is measured for this purpose with a resolution of 1µm. The test force is regulated with an accuracy of 1 mN.
The specimen unit is moved by an electromotor and makes fitting and removing the specimens uncomplicated and simple.
Automatic, software-controlled operating and standardised evaluation and representation of the findings.
.
Technical specifications:
.
Integrated programmable controller for controls and recording measured data
Compact tempering unit with heater and compressor cooling and powerful pressure/suction pump
Temperature range: -40 to +20°C
Resolution ±0.01 K
Freely selectable test temperatures
Separate test bath with constant level maintenance
Linear-electromagnetic loading unit, max. lift 10 mm, max. force 2000 mN
Incremental transducer, accuracy better than 1 µm
Load cell accuracy class 0.1 (better than ± 0.1%)
Force control better than 1 mN
Working range 0 … 1500 mN
Own layout of test records
All Test Data as csv-file available
Width 1200 mm including PC on the bracket
Weight: approx. 80 kg without accessories
Weight thermostat: approx. 60 kg
Test bath: approx. 2 l
Bath liquid (recommended): Ethanol, 95 % or silicon oil Fragol Therm XT12.
Dimensions approx.: 650 x 600 x 1500 mm
Weight approx.: 140 kg
Electric data: 230/240 V, 50/60 Hz, 2 kW
(Compressed air or a compressor (5 bar) with airflow between 6 up to 10 l is necessary.)
