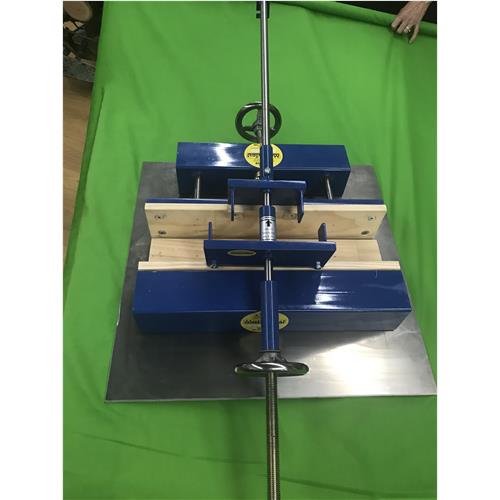

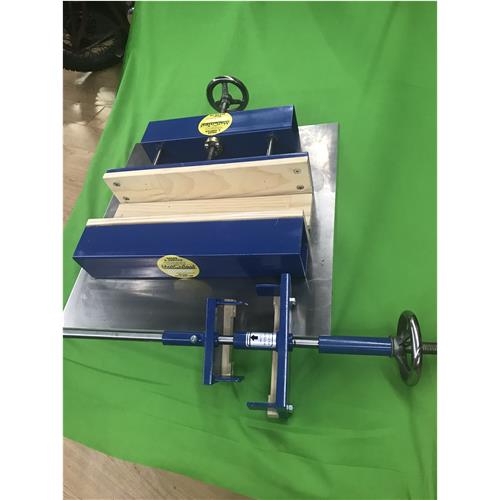

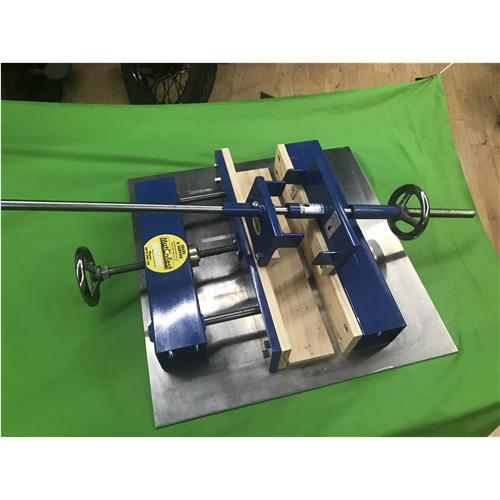

Brick Joint Flexual Strength load frame Apparartus
Designed to AS3700 Appendix D
This Apparartus is supplied with:
-Design for 190*190*200 Blocks or 110 *230 *76 Bricks
-600 * 600 Aluminium Base plate to reduce weight
-Lever arm length ‘d2’ less ‘tu’ is 500mm refer AS 3700 Appendix D
-Plywood contact faces
-Two Lever block plates to comply with Figure D1 Plan view for both 230 long Bricks and 390 long Blocks

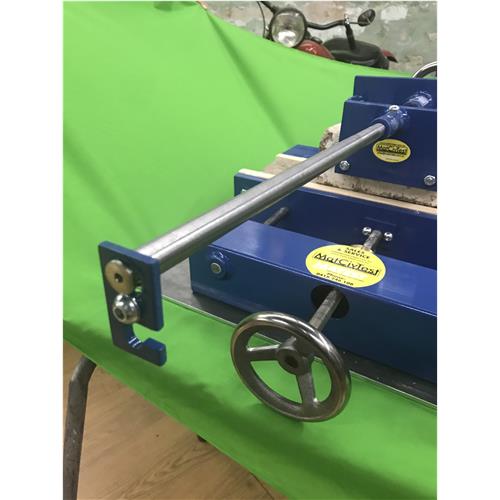

-Includes bucket hanging hook
-Excludes Bucket and bench hold down bolts if needed
-All minimum dimesnion in Figure D1 are met
