Designed to house the loading frame of a 50kN UTM machine in the chamber keeping the motors and electrical equipment in the general lab environment.

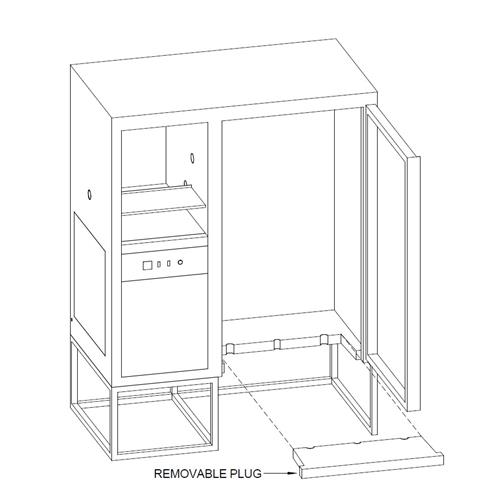

The Removable plug allows the UTM to be slid into place from the front of the work bench.
To achieve this the design is based on our Standard Horizontal configuration environmental Chamber (101-V0173-H0820) and raised for the UTM machine
Configured with the compressor on the Left side of the chamber
Designed to be placed on existing laboratory benches 900D.
.
Includes
Glass front window
For a powder coated base frame, and the removable base plug to suit the UTM Automatic test machine (101-S0060-050)
.
Specification
Temperature range +2C to +60C

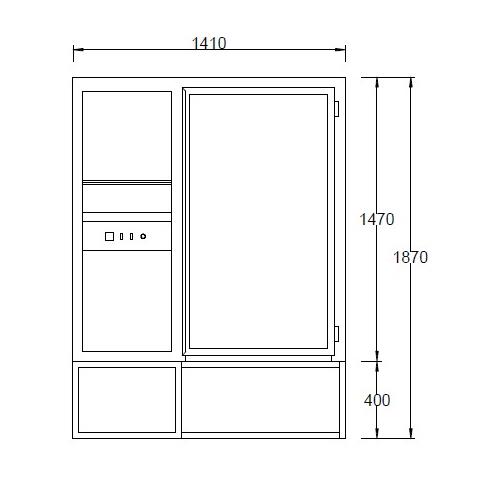

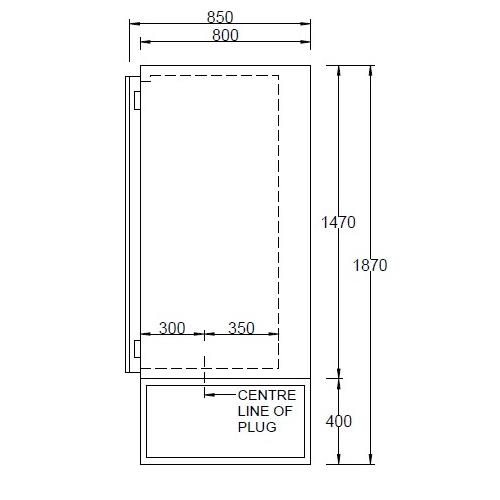

Dimensions
External 1410W x 1870H x 850D
Internal 795W x 1370H x 750D.
Power 240V 50Hz
