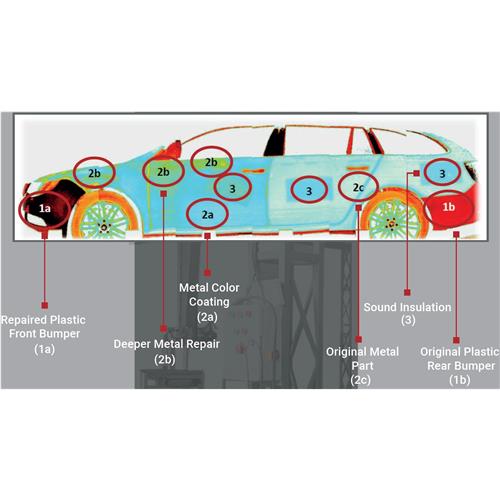

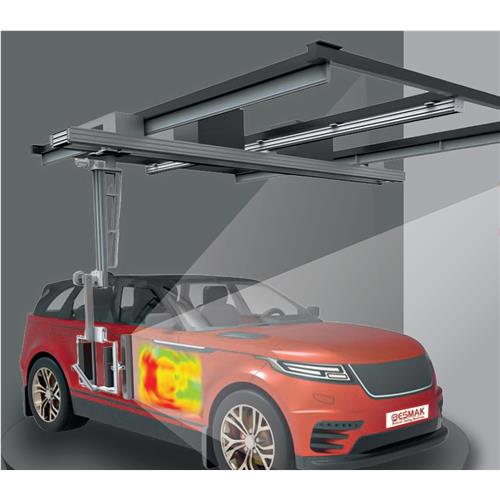

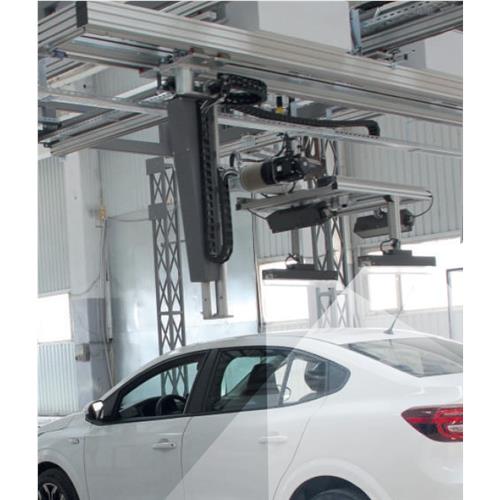

The system can perform a non-contact analysis of all the defects listed below on the sample using a mobile robotic system. It provides the user with objective results on changes in the behavior of the samples with micron-level precision.
Dent
Welding
Correction
Varnishing
Part Replacement
Coating
Paint Thickness
Body Filler
There is no need to clean the vehicle beforehand for testing. It detects damages that cannot be assessed by hand or eye. Provides clear information about the device that is in the commercial phase
Techncial Specification
-LCD Screen

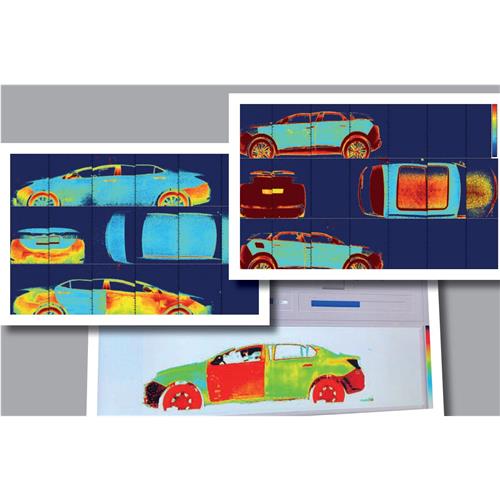

-Not just a single point, but an examination of the entire surface
-Accurate Results in Just 10 Minutes
-The system provides repeatable results, allowing for before/after comparisons
-Contactless Measurement ensures no marks or damage to the device, and no changes occur
-High-Impact Flash for measurements of defects between 0-500µ, and a special infrared lighting system for defects above 500µ
-High-resolution IR camera that captures 25 frames per second
