STANDARD: AS1289

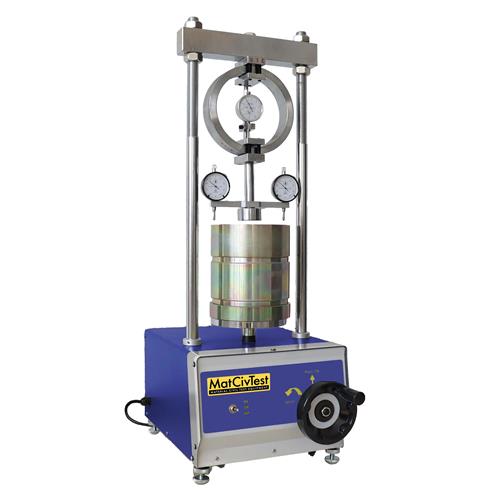

This manual CBR test machine is designed for la-boratory CBR test to evaluate the strength of soil subgrades and base course materials (the particle size of the soil is less than 40mm)
It consists of a two column frame with adjustable upper beam, proving ring, penetration bar, loading plate.
Capacity 50kN
Load speed 1mm/min
Penetration Piston 50mm
Platen stroke 70mm
Test mould DIa 150 or 170mm
Dimensions 34 x 50 x 88 cm
Power 220 V, 50 Hz, 110W
Weight 82kg
NOTE Dial indicator, Piston, Load Ring and moulds to be ordered separately
