The cooling capacity of the unit is sufficient for the operation of one (1) analyzers, extraction machines etc in Mild climate conditions.

Can be installed inhouse or outside (covered and not in direct sun exposition)
.

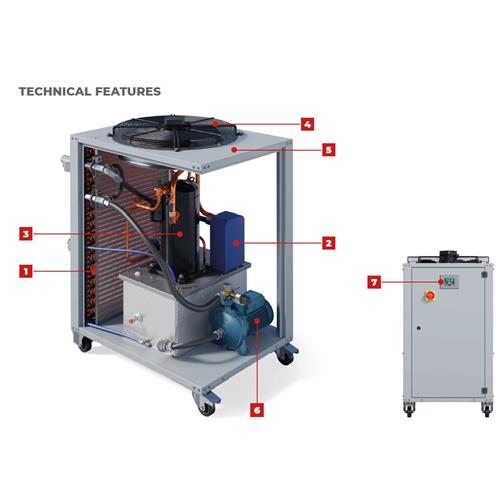

Closed water cooling system with tank and electronically controlled cooling water temperature with digital display.
In case of installation outside at temperatures below 0°C, the tank has to be filled with an anti-freezing water-/glyclol mix.
To prevent corrosion and formation of biological matter it is recommended to add antifreeze (2xZ599.910) to the water filling.
A suitable water supply and tubing installation has to be provided locally. Layout details are available on request.
.
Technical specifications:
-Water tank capacity: 25 l
-Cooling capacity Water out +15 °C / Air +25 °C 2.2 kW
-Cooling capacity Water out +7 °C / Air +35 °C 1.5 kW
-Typical Temperature range of circulation: 5°C – 25°C
-Pump Flow Rate 8 L/min
-Connections 1/2″BSP
-Pump Pressure 3.0 – 3.5 Bar
.
Dimensions approx.: 590 x 500 x 880 mm
