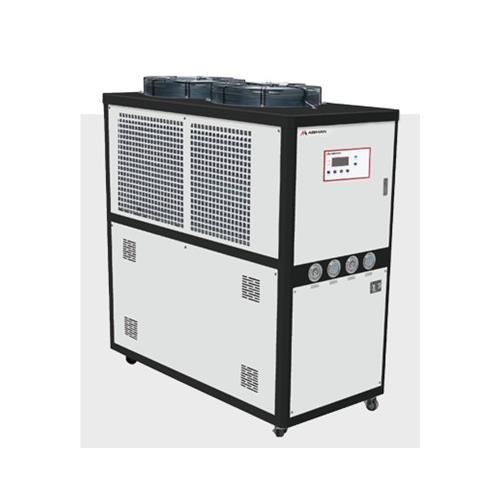

Closed water cooling system with tank and electronically controlled cooling water temperature with digital display.
In case of installation outside at temperatures below 0°C, the tank has to be filled with an anti-freezing water-/glyclol mix.
To prevent corrosion and formation of biological matter it is recommended to add antifreeze to the water filling.
A suitable water supply and tubing installation has to be provided locally. Layout details are available on request.
Can be installed inhouse or outside (when outside it requires cover and not in direct sun exposure)
.
Technical specifications:
Compressor Power kw 12.7
Cooling capacity/10C Air Cooled kw 42
Refrigerant type R410A
Chilled water Air Cooled flow L/min 124
Chilled water Chilled water connection A 50A(2″)
Chilled water Pump power kw 1.1
Chilled water pump pressure bar 3.1
Condensor Air flow m^3 / hr 15000
Condensor Fan power kw 0.8
Chilled water Water Tank L 120
Water supply 15A(1/2″)
Drain 15A(1/2″)
Overflow 15A(1/2″)
Dimensions Air cooled mm 2000x920x1800
Dimensions Weight kg 520
