Standard BS 1610, ASTM C39, NF P18-411, AASHTO T22, GOST 10180-2012

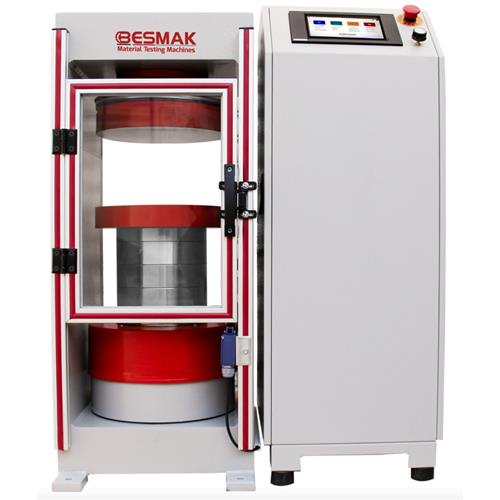

Wall type Welded frame design
50mm piston stroke,
Upper platen spherically seated to allow an inclination of 3°, Hardened 56HRC and fine ground machined.
cube samples up to 200x200x200mm, cylinder samples up to, 150x300mm
Maximum daylight:
-Vertical 375mm between platens
-Horizontal 350mm between side plates
Distance Pieces for smaller specimens are not included in the base machine price..
.
The load measurement and control: is carried out between 1% and 100% of the capacity with class 1.

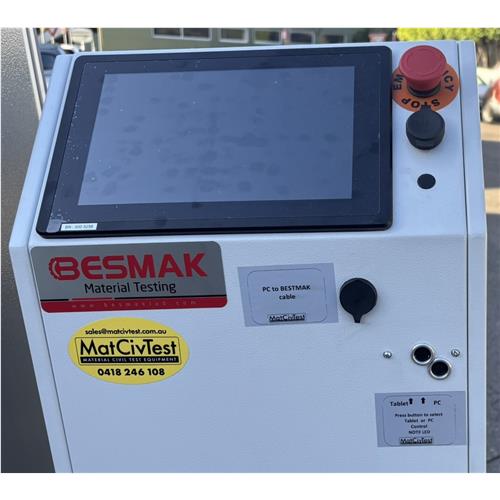

Control Unit Features: is “Sematron Touch Series V4” advanced controller:
Loading, unloading, load control, deformation control, constant load increase adjustable between 0.5 kN/Sec –25 kN/Sec, or mm/min pace rates (requires extras sensors).
Piston release load automatically at sample break, for simple strength test – ramp loading, 1kHz data acquisition and control capability.
(PID) control with double loop, automatic gain feature for different sensors, automatic calibration function, extra channel for a 2nd load sensor.
This system allow you have to full Elastic modulus and Poisons ratio capability with cyclic load and other advanced features. The features include full PC interface for complex testings from a PC or use the built-in tablet for conventional testing reequipments

.

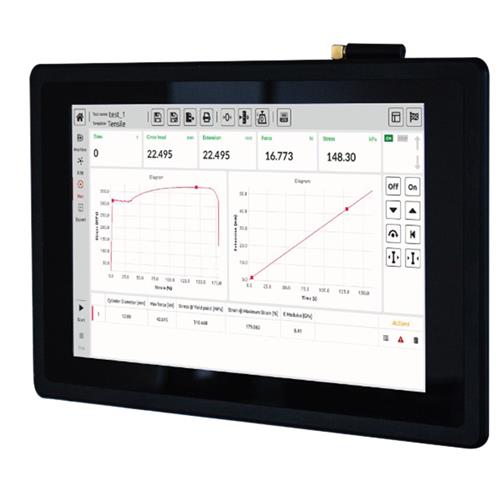

Display Unit: 10 inch touch screen LCD.
Built-in software, 4 GB (extendable) internal memory to save test graphics and settings
USB/LAN port to transfer results and connect with internet and PC.
Save results in pdf and excel format, print result, feature directly from Machine – feasible to attach all HP printers also allows mini printer (optional), Email results directly from Machine
.
PC SOFTWARE: Allows controlling machine with computer, PC software allows same features and menus as Tablet display unit plus allow for calibration and application tuning
