Meets AS1012.17 Section 2 & 3, ASTM C469
Used to determine the strain and deformation characteristics of concrete specimens for Elastic Modulus calculations. Specimens 100×200 to 112.8×220 mm.

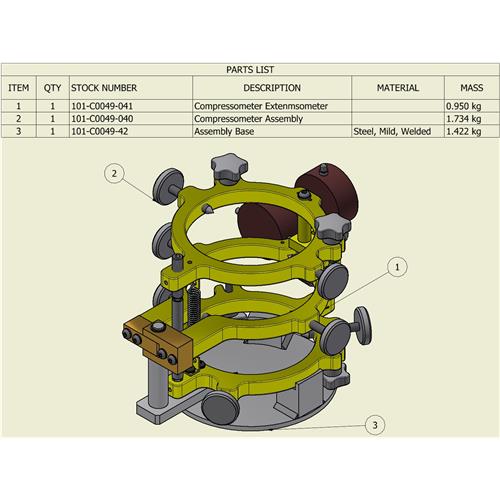

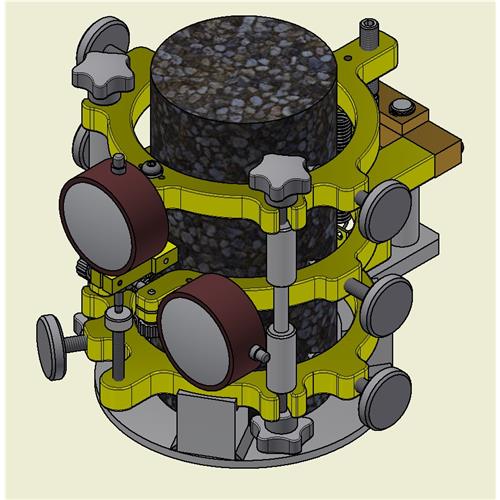

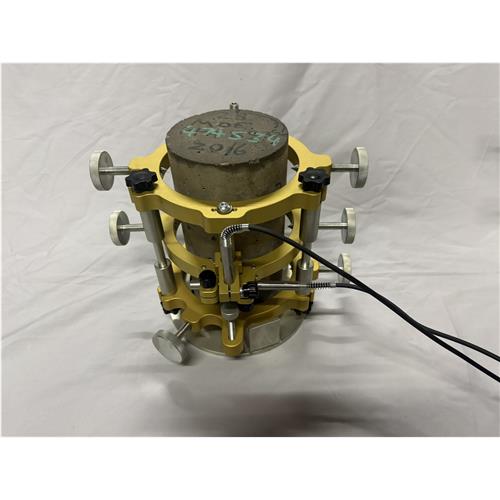

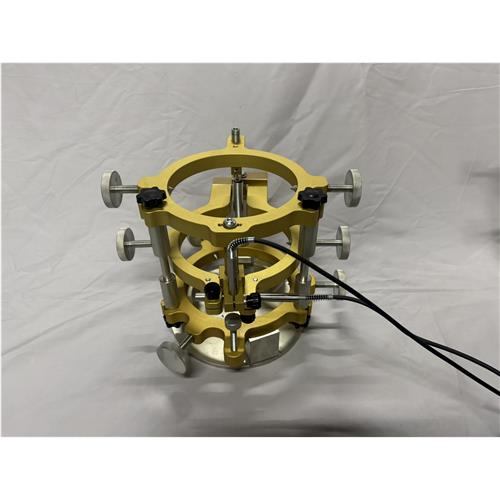

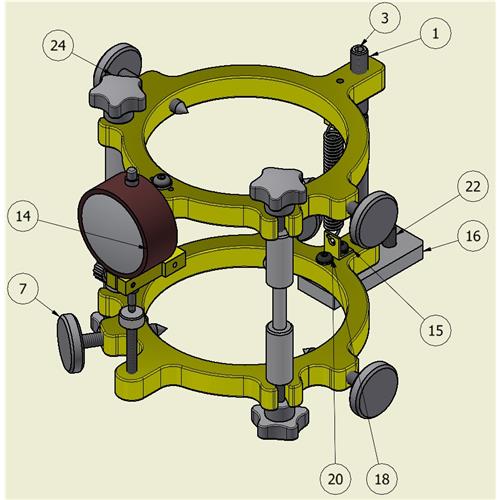

Comprises two steel rings for clamping to the specimen, two gauge length bars, and spherically-seated lever unit.
Radial Deformation meassurments for Poisson’s Ratio can be added with accessory 101-C0049-41

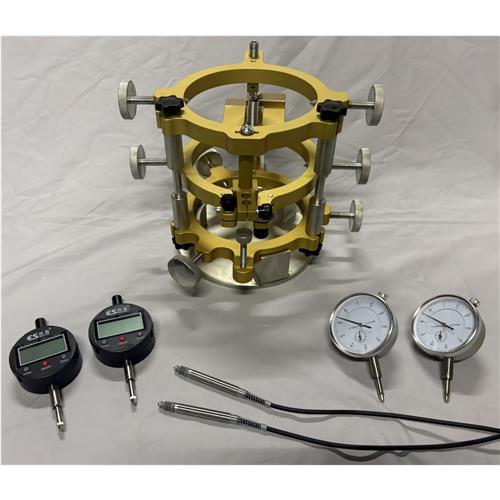

Excludes dial gauge or strain transducer to be ordered separately (see accessories). One required 5 to 10mm travel transducer or dial gaughe with 8mm dia mounting
