Digital Concrete Test Hammer is an advanced solution for non-destructive testing (NDT) of concrete compressive strength,
Combining precision engineering with smart digital technology.

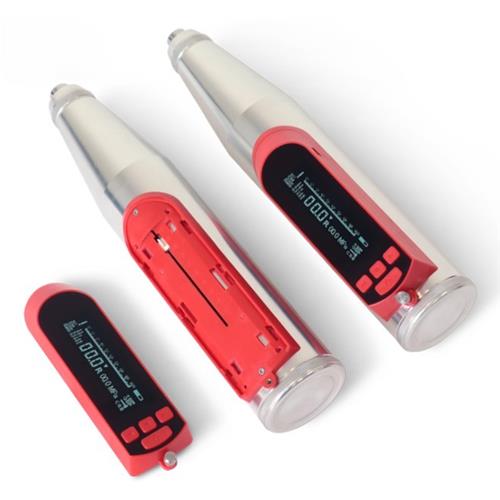

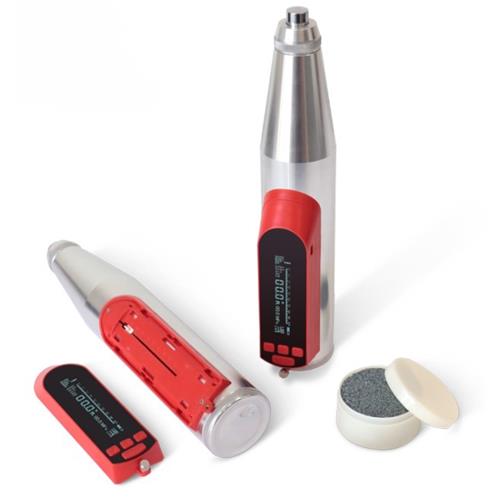

This innovative device features a unique modular design that separates the mechanical hammer body from the digital processor, allowing for quick field replacement of components when needed.
Features
· Built-in large capacity memory stores up to 1000 components with 16 test zones and 16 test points each
· Supports both standard measurement mode and customizable testing modes
· Support break-point continuous test, and data collection is more convenient and humanized
· Automatic correction for test angles, casting surfaces and carbonation depth up to 6mm· Support Bluetooth online, expand the use of mobile app connection, and make it more convenient to upload data to the cloud with the cloud server
· Features non-contact optical sensor technology for wear-free operation and longer service life
· Support system upgrade. According to user feedback, the company will upgrade the system regularly to improve the use experience
· Data can be exported to PC software for quick report generation in Excel format
Includes
1 digital/mechanical rebound hammer unit,
1 high-capacity lithium-ion rechargable battery and charger,
1 Mini-USB data cable,
1 calibration anvil,
1 product manual.

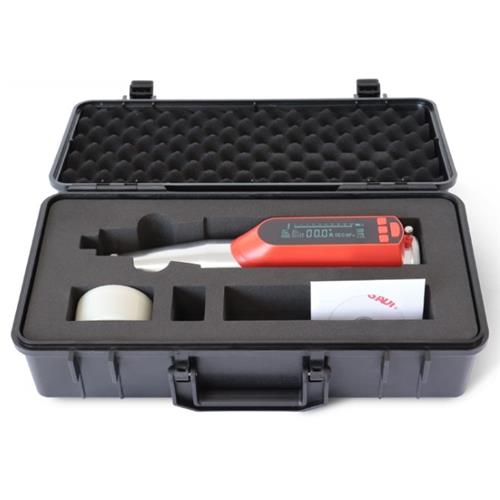

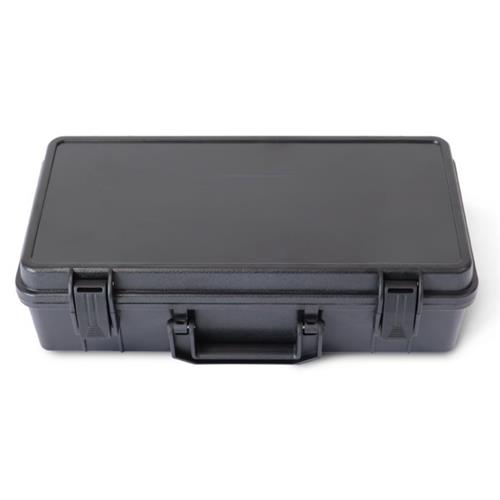

The concrete hammer is supplied complete with carrying case, grinding stone, and instruction manual.
Suitable to test also rock core samples.
Spring impact energy 0.225 mkg. (2.207 Joule or Nm)
Typically called Type N Hammers
Strike hammer stroke: 75 mm
Spherical radius of strike rod: 25 mm
The rebound values calibrated on steel anvil: 80±2
Dimensions: DIA 54 * 278 mm
Gross weight approx: 1.6Kg
