Designed for determination of fracture mechanics parameters

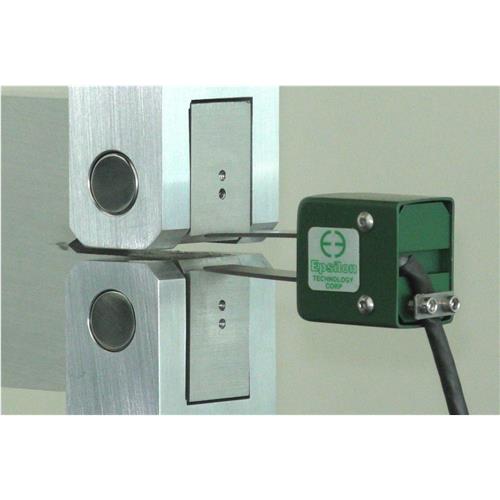

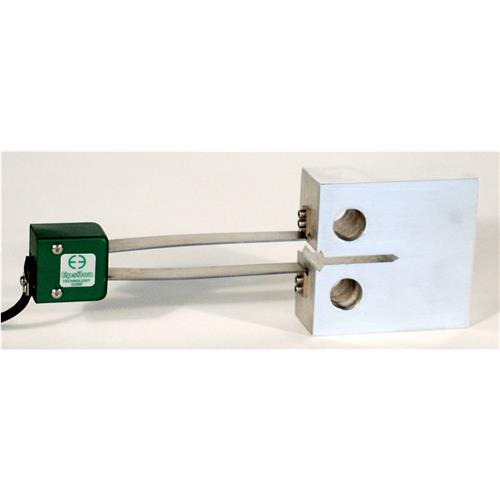

CLIP ON CMOD Gauge.
– Stainless steel construction (not Aluminium as per other brand)
– Total stroke 2.5 to 20 mm to be confirmed on ordering
– Suitable for flexure test according to EN14651
– Operating principle: strain gauge, full bridge
– Bridge resistance: 350 ohm
– Output 2 to 4 mV/V +/- 0.1
– Voltage 5 to 10VDC recommended Max 12VDC

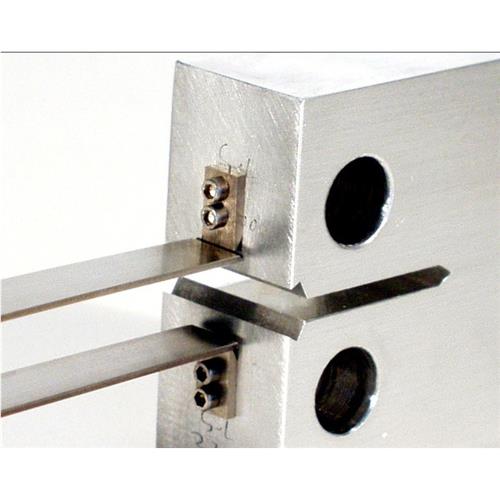

– Excludes wedges for mounting on specimen Use 101-C0028-020
