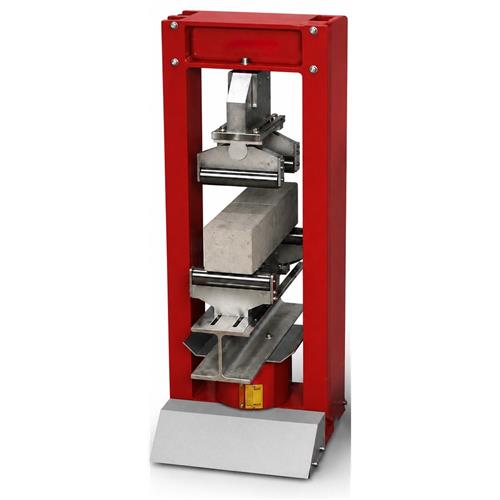

FOR FLEXURAL TESTS ON CONCRETE BEAM SPECIMENS MAX. DIMENSIONS 150X150X600 (750) MM
STANDARDS: EN 12390-5 , ASTM C78, C293 , AASHTO T97 , BS 1881:118

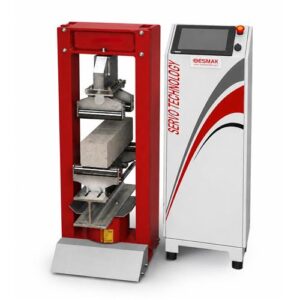

Can be added to any appropriate pump and controller in a dual frame system.
Max. vertical daylight between upper/lower rollers: 160 mm
Rollers dimensions: Ø 40×160 mm
Complete with 4 adjustable and articulated rollers.
Distance of lower rollers adjustable from 100 to 455 mm
Distance of upper rollers adjustable from 40 to 155 mm
Max. ram travel 50 mm approx.
Calibration accuracy: class 1.0
Dimensions: 540x460x960 mm
Weight: 180…240 kg approx.
Excludes Pump and Controller and pressure / force transducer
The pump and controller will need either Solenoid or Manual change over valve plus aditional pressure transducer.
