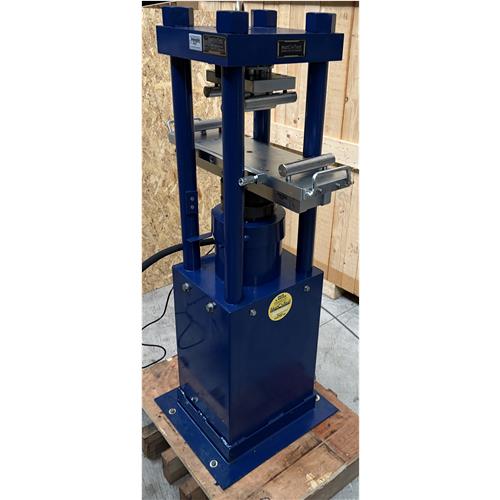

FLEXURAL TESTING 150 KN FRAME ONLY
SKU : 101-C0064-201
FOR FLEXURAL TESTS ON CONCRETE BEAM SPECIMENS
MAX. SPECIMEN DIMENSIONS 150X150X600 (750) MM
The additional combined frame is supplied complete with;
-pipes, connectors, accessories required.
-Max. vertical daylight between upper/lower rollers: 160 mm
-Rollers dimensions: dia 40×160 mm
-Complete with 4 adjustable and articulated rollers. (Can be use as a 3 set or 4 set bending)
-Distance of lower rollers adjustable from 100 to 455 mm
-Distance of upper rollers adjustable from 40 to 155 mm
-Max. ram travel 50 mm approx.
Excludes
-specific pressure transducer connected to one channel of the digital readout unit
-change over valves for Dual Frame Selection Options available
101-C0064-900 Manual Dual Machine Valve
101-C0064-901 Automatic Dual Machine Valve
