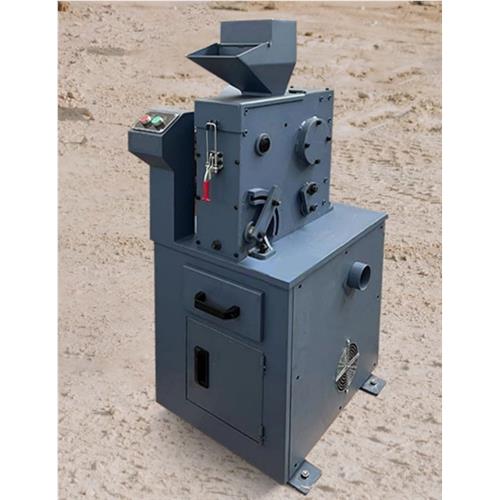

The fine jaw crusher is mainly used to the preparation of medium-strength material samples in coal, mining, electric power, geology, metallurgy, chemical and other industries. It is a new environmentally friendly fine crushing equipment.
The jaw plate is made of chrome steel with good wear resistance and high strength, suitable for crushing all kinds of raw ores.
.
FEATURES
-Equipped with one-button start and motor protection devices
-Rapid particle size adjustment device with scale
-Equipped with 78 dia dust removal connection
-Simple structure, stable performance
-Uniform and accurate crushing particle size
-Easy to operate, good sealing, low noise
-Balanced operation, high efficiency and rigidity
.
Technical
-Feed inlet size 60×100mm
-Feed size =50mm
-Final fineness <3mm -Jaw plate - Chrome steel -Rotate speed 600rpm -Production capacity 50-200kg/h -Power supplk / Motor power 2.2kW Three-phase, 380V, 50Hz -Dimensions 620×560×1200mm -Weight 250kg
