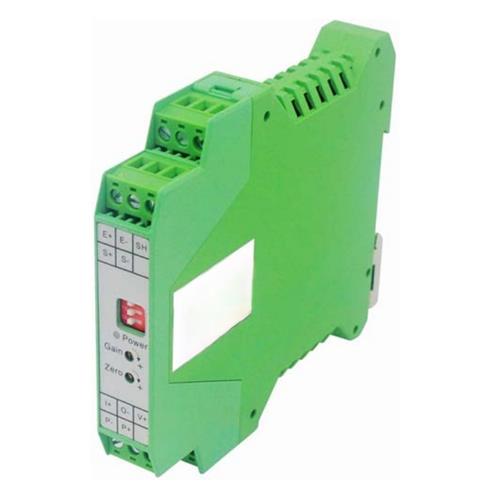

The load cell DIN rail amplifier is a versatile signal conditioning device specifically engineered to convert the low-level millivolt (mV) output signals from load cells and force sensors into standard industrial outputs.
This Model is output of 4 to 20mA

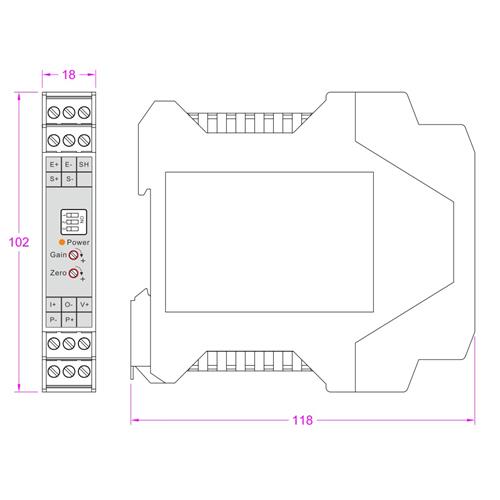

This conversion enables easy integration with data acquisition systems, PLCs, and industrial control equipment. The FSD amplifier is designed for convenient DIN rail mounting, making it suitable for control panels and industrial automation applications.
Features
-Wide input voltage range of 12V to 26V DC
-Low power consumption of less than 1.2W
-Amplifier offers a switchable bandwidth option between 100Hz and 3kHz, allowing users to elect the most appropriate frequency response for their application
-Calibration of the output signal is straightforward, easily accessible Zero and Gain potentiometers on the unit,
