STANDARD: EN 1097, EN 1340, NF P18-576 ,ASTM 6928, ASTM D7428
The machine is used to determine the resistance to wear of aggregates.

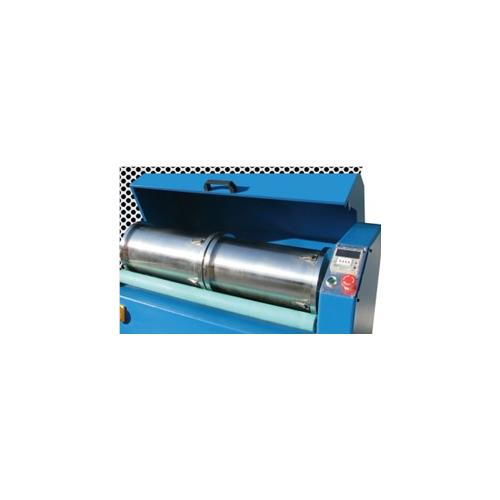

The machine consists of a steel frame suitable to house four cylinders (EN & ASTM spec) or two Dia 200mm x 400mm cylinders (EN13450).
The top machine is enclosed in a sound proof and safety cabinet conforming to CE requirement and stops automatically when the cover is open.
The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum or the total working time.
Features:
Equipped with four ASTM Spec Jars Dia 194 – 202 mm Height 170 – 177 mm stainless steel jar with an abrasive charge of up to 5,000 of 9.5mm diameter stainless steel balls
Revolutions rolling counter
Enclosed in safety protection
Options for EN and other specifications (order separately)
Four Dia 200mm x 154mm stainless steel cylinders
Two Dia 200mm x 400mm cylinders
.
Specifications:
Power AC220V 50HZ, single phase, 750 W
Weight 170kgs
Dimensions 1100 x 470 x 1200mm
