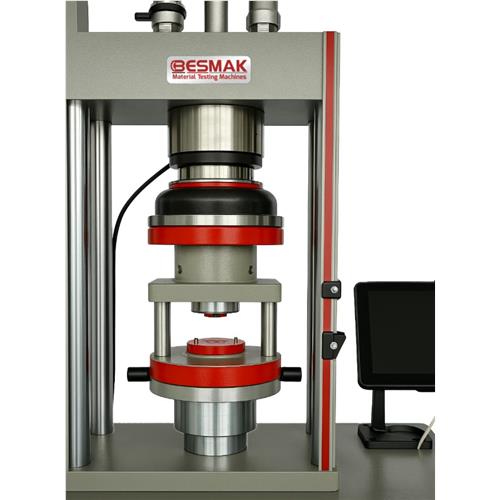

2-column rigid construction
Double Piston Cylinder Dual Load Cell 250kN/25 kN Capacity
50mm piston stroke,
Upper platen spherically seated to allow an inclination of 3°, Hardened 56HRC and fine ground machined.
Maximum daylight is 200mm between platens
Distance Pieces smaller specimens are not included int he base machine price..
.
The load measurement and control: is carried out between 2% and 100% of the capacity with class 1.
Control Unit Features: is “Sematron Touch Series V4” advanced controller:
Loading, unloading, load control, deformation control, constant load increase adjustable between 0.05 kN/Sec –15 kN/Sec, or mm/min pace rates (requires extras sensors).
Piston release load automatically at sample break, for simple strength test – ramp loading, 1kHz data acquisition and control capability.
(PID) control with double loop, automatic gain feature for different sensors, automatic calibration function, extra channel for a 2nd load sensor.
.
Display Unit: 10 inch touch screen LCD.
Built-in software, 4 GB (extendable) internal memory to save test graphics and settings
USB/LAN port to transfer results and connect with internet and PC.
Save results in pdf and excel format, print result, feature directly from Machine – feasible to attach all HP printers also allows mini printer (optional), Email results directly from Machine
.
PC Software: supplied which allows controlling machine with computer, PC software allows same features and menus as Machines display.
Shipping dimensions 0.75 x 1.35 x 1.82 m – 1,01 m2 – 785kg
