Standards
ASTM C305 , EN 196-1, EN 196-3, EN 1015-2, EN 413- 2, 459-2-EN 12687-35
.
TECHNICAL SPECIFICATIONS
The Automatic mortar mixer is designed to mix mortars and cement pastes to the requirements of EN 196-1, EN 196-3 and ASTM C305.
.
The mixing paddle has a planetary motion and is driven by a motor with a microprocessor speed controller.
When the device automatic use option is selected; It mixes according to pre-programmed mixing programs in accordance with the cement and mortar preparation steps specified in international standards.
.
In the manual option, the machine can be used as a simple to operate, two-speed mixer.
.
Additionally, an automatic mixing program option where the user can define the time intervals for mixing has also been provided.
.
A safety switch is included to help set the mixing beater to the correct position to control the required clearance between the mixing blade and the bowl.
.
An automatic sand dispenser is attached to the side of the mixer and feeds the sand into the mixing bowl through an automatic command from the program controller, depending on the program selected.
.
A water dispenser assembly is also fitted to the side of the machine and allows the dispensing of pre-determined volumes of water for the requirements of EN 196 automatic.
.
The mixing paddle revolves at a rate of 140 and 285 (r.p.m. clockwise) with a planetary motion of 62 and 125 (r.p.m. clockwise) in low speed.
.
Safety guards are madatory option for general lab mixing work. Refer product 101-E0122-58 to be added to the order.
.
Technical
5L Capcaity Bowl
220/240V 50Hz
Speeds (rpm) Paddle Mixing Head Shaft
– Low (Manual Speed 1) 140 ± 5 62 ± 5
– High (Manual Speed 2) 285 ± 10 125 ± 10

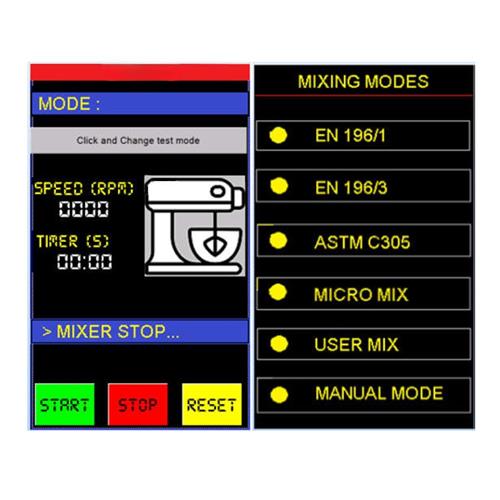

– 5 in Colour Touch Screen Display for display data. Equipment Interface: HC05 Model Bluetooth for connection PC and Printer.
