Standard ASTM D7830

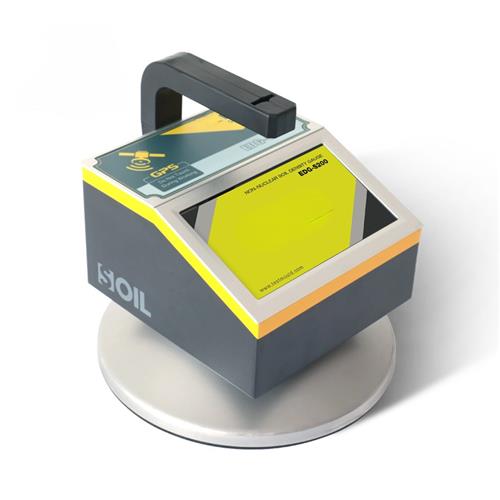

The Electrical Density Gauge (EDG) is a nuclear-free alternative for determining the moisture and density of compacted soils used in road beds and foundations.
The EDG is a portable, battery-powered instrument capable of being used anywhere without the concerns and regulations associated with nuclear safety.
Details
· 5.0 in full color graphics driven user interface, touch screen operation, easy to use.
· New status bar, displays GPS status, data save status, available battery voltage, low battery status and date and time
· New data management, quickly access, download or delete your project data
· Ability to download files from the EDG-S200 via USB drive
· Fast, reliable, accurate material density and compaction test, and repeatable readings in real time, user friendly, cost effective
· No additional calibration is required and field testing can be performed directly. Users only need to input the corresponding data to create the soil model before use.
· The data can be read accurately in 5 seconds, with higher precision and better stability.
· Non-Nuclear means no badges, licenses or storage and transport concerns
MECHANICAL SPECIFICATIONS
Host Net Weight 3.0kg
Host Dimensions 270mm×270mm×280mm
