PENETROMETER DIAL CONE COMPLETE -AUTOMATIC
SKU : 101-S0132-02
The standard penetrometer is ruggedly constructed, with an aluminium base table with levelling screws, plated vertical rod.
The slider is brass made with free fall.
-plus a Magnetic controller release device with electronic digital programmable timer for repeatable drop times.

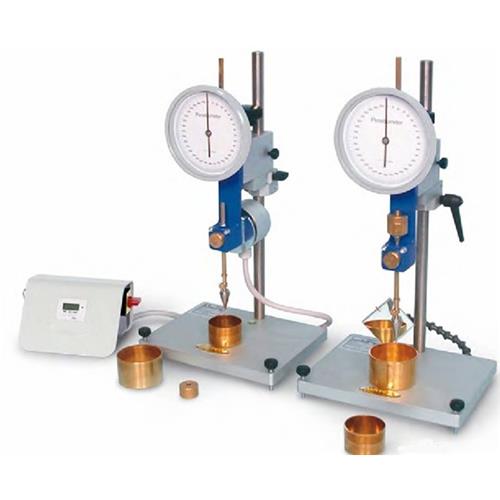

The cone penetrometer consists of:
– Aluminium base with levelling screws and spirit level.
– Chromed vertical rod with micrometric vertical displacement device.
– Dial gauge 150 mm diameter, graduated in 360°, division 0.1 mm
– Slider, brass made, with free fall, stop and release push button, automatic zero set.
– Stainless steel penetration test cone 35 mm long, 30° angle.
– Weight 20 g
– Two brass cups Ø 55×35 mm and 70×45 mm
Power supply: 230V 1ph 50-60Hz 200W
Dimensions: 220x280x410 mm
Weight: 15 kg approx.
