Standard EN 1426 – ASTM D 5 – AASHTO T49
For determination of the needle penetration.

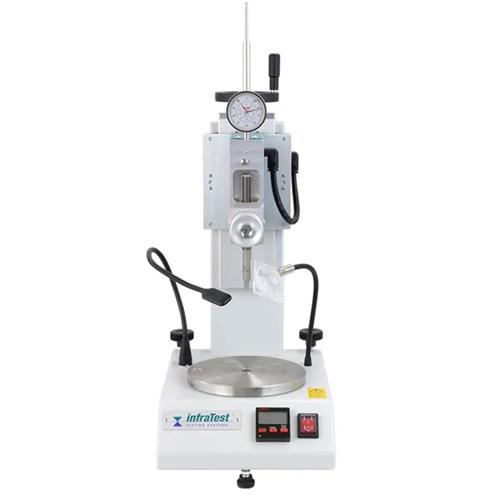

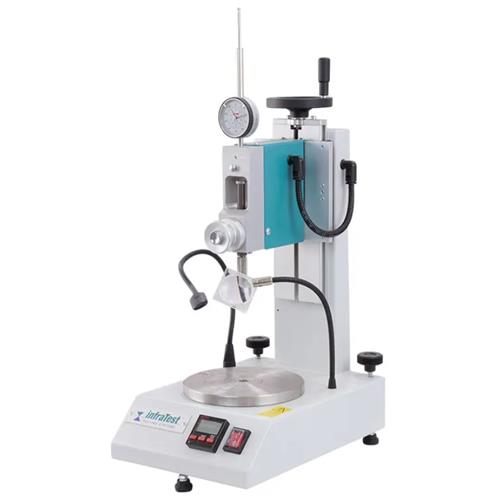

Rigid frame with base plate and level gauge and movable penetrometer arm with automatically operated plunger
release by a multifunctional timer, range 0.1 seconds to 99.99 hours.
To set the penetration needle onto the sample a halogen lamp and magnifying glass, both with movable arms are attached.
Supplied with dial gauge 30 x 0.01 mm to measure the penetration depth and plunger 97.5 g (plunger 47.5 g available as
an option 20-2080E30).
Penetration needles etc. not included.
.
Weight approx.: 16 kg
Electric data: 230 V, 50/60 Hz, 0.1 kW
