PISTON – UCS PLATEN 110 DIA SWIVEL TYPE SOIL

PISTON – UCS PLATEN 110 DIA SWIVEL TYPE SOIL

SKU : 101-S0060-815

Add to Quote

Suit Soil and granular products
Supplied with:

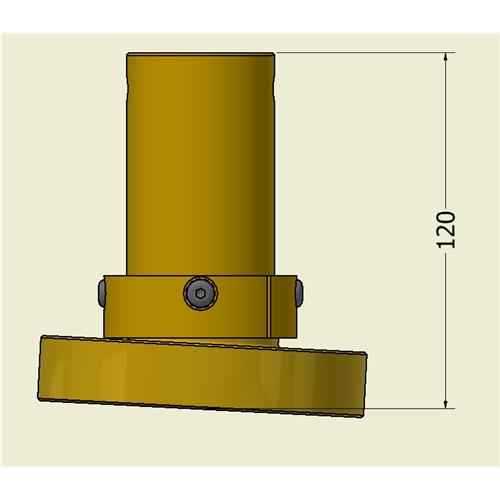

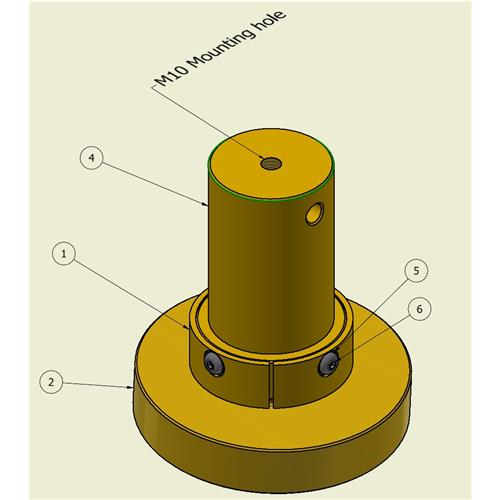

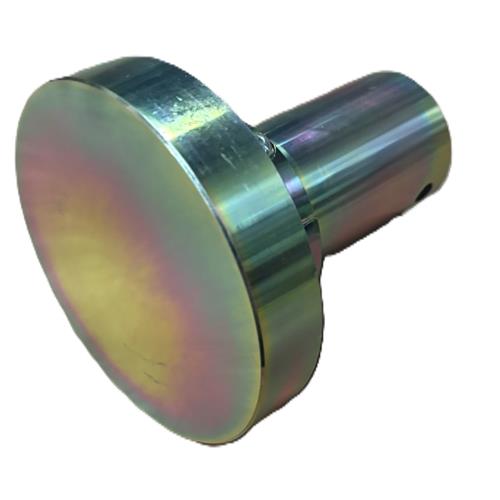

-Upper Spherically seated 110mm dia Platen and mounting piston with M10 mounting stud
—The diameter of the spherical seat is 80mm.
—The centre of the sphere in the spherical seat shall coincide with that of the bearing face of the specimen.
—The movable portion of the platen is held closely in the spherical seat,

No additional information available.

101-S0060-815 UTM Tooling
