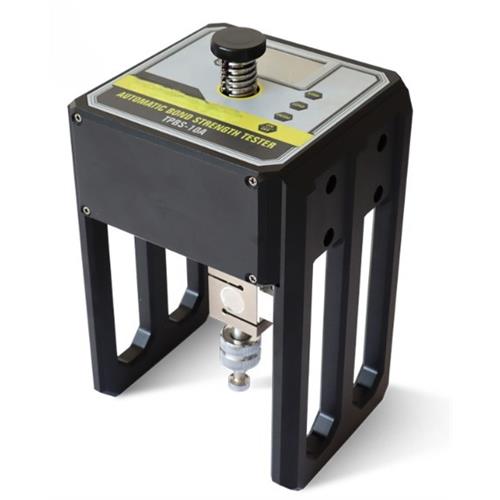

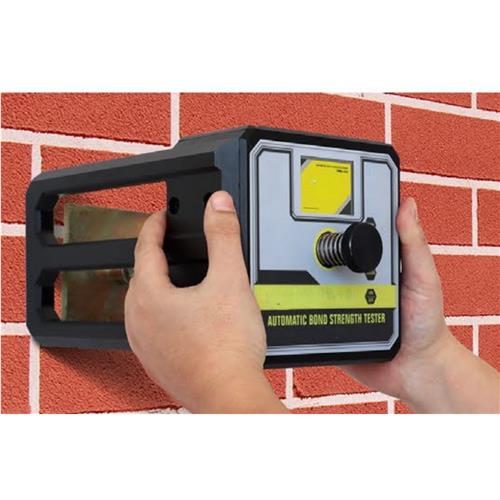

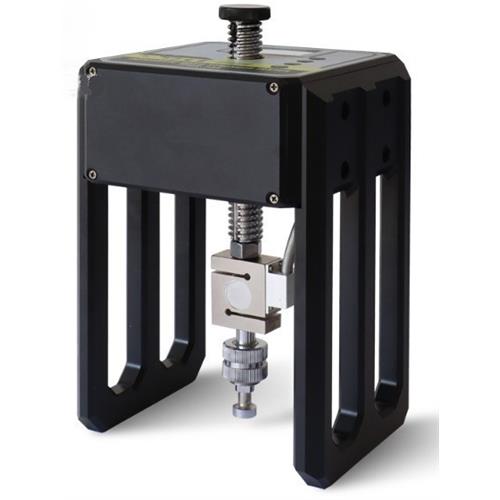

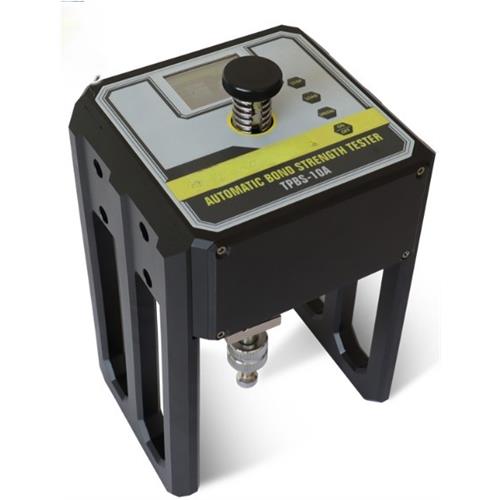

The automatic bond strength tester is suitable for testing
-Pull-off strength of rivets used to fix thermal insulation materials in construction projects
-Bond strength of wall thermal insulation materials
-Bond strength of exterior wall facing tiles, carbon fiber materials, various panels, paints and other materials.
FEATURES
? Integrated structure design, one-button loading, no manual testing required.
? The shell is made of high-strength aluminum alloy, which has higher load capacity and is more durable.
? The supporting legs adopt a hollow design, which keeps the weight down without affecting the strength.

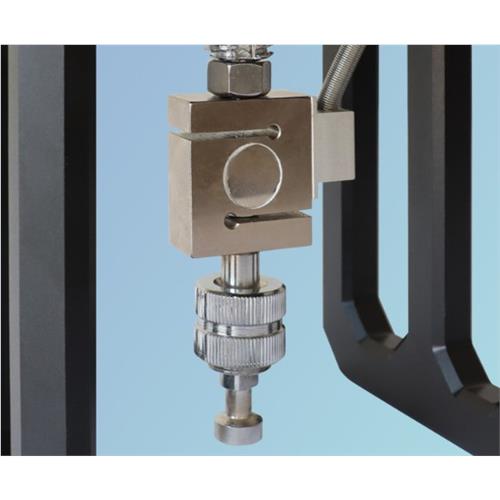

? High-precision S-type Load Cell with accuracy level above 0.5%F.S.
? It adopts a 2.2-inch touch screen plus external buttons, with clear display and easy operation.
? Real-time display of force value, strength value, displacement and speed.
? Force value, intensity value and time curve display function, polyline correction function and peak value hold function.
? The test force value can be set, and the equipment will stop automatically when the test force value is reached.
? Data can be recorded, queried, deleted and exported.
? It is powered by lithium batteries and can be equipped with a large-capacity external power supply for longer battery life.
TECHNICAL PARAMETERS
Display mode: KN, MPa, and psi are displayed at the same time
Control mode: Touch screen + button
Display: 2.2-inch LCD touch screen

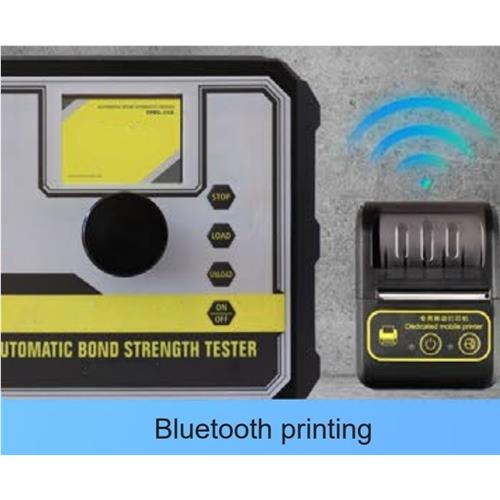

Print: Bluetooth printer (optional)
Host material: Lightweight aluminum alloy
Measuring range: 0~10KN Using a “S” type load cell
Resolution: 0.001KN
Accuracy level: 0.5% F.S
Displacement range: 50 mm
Displacement resolution: 0.01mm
Tensile rate: 4~14mm/min adjustable from the touch screen
Load cell linear calibration correction: 10-segment polyline
Storage capacity: 200,000 records
Power supply: Lithium battery
Host dimension: 240×150×165mm
Packaging dimension: 430×230×350mm
Host weight: 4.5kg
Total weight: 12.5kg
