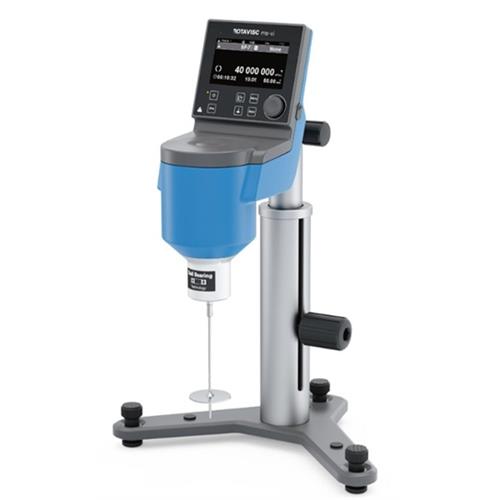

For precise and reliable viscosity measurement of difficult to measure, highly viscous samples such as asphalt, bitumen, wax, polymers, candy mass or hot melt adhesives
For applications in a measuring range from 100 to 40,000,000 mPas. Accuracy (FSR) 1%

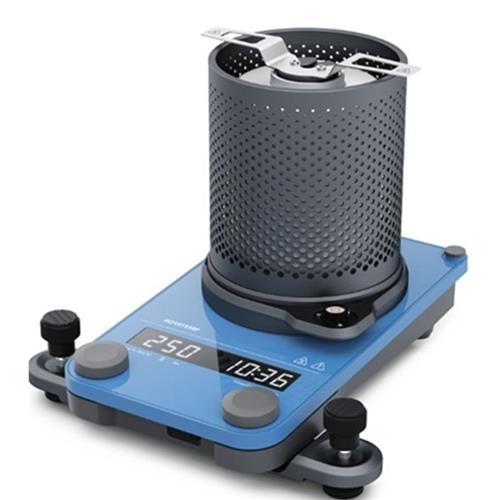

Samples can be heated up to 300 °C in just 16 minutes without overheating, enabling precise and reproducible measurements.
Technical data:
– Setting accuracy Speed 0.01 – 200 rpm
– Direction of rotation motor right
– Timer and continuous operation mode
– Time setting range 0.017 – 6000 min
– Temperature measurement resolution 0.1 K
– Permissible density 9999 kg/dm3
– Working temperature -100 – 300 °C
– Dynamic load 5 kg
– RS 232 & USB interface
Scope of delivery
Spindel set-2 (SP7, SP8, SP9, SP10, SP 11, SP12). PT 100.8
Software – Labworldsoft: Measurement curves and parameters can be easily recorded for analysis and documentation and can, for example, control or monitor sample temperature control and pH measurement.
Hard- and software requirements
> Windows 7 / 8.1 / 10 / 11 (64-Bit operating system
> Not less than 8 GB RAM
> Min. 10 GB Free hard disk space
Dimensions; 351x629x372 mm
Weight: 7.1 kg
Electrical data: 50/60 Hz 100 – 240 V
Excludes: Tempertature control system, PC
