Standard: STANDARDS: EN 1097-8 , EN 1338, 1341, 1342, EN 13036-4 , EN 1436, BS 7976, ASTM E303
The skid resistance and Friction Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and test surface.
Designed both in the lab and on site.
FEATURES
Designed for laboratory and in situ road surface testing
Calibrated to ASTM E-303
Low friction arm, and lightweight pointer
Comes with integral ‘F’ scale for use with small slider set for 76mm slide length. (PSV tested)
Repeatable and reproducible
The base of the instrument can be folded, easy to carry and cartoning
Supplied with robust carrying case
ACCESSORIES— STANDARD INCLUSIONS
-Portable skid resistance and friction tester, adjustable in height
-Sturdy case with dense foam inserts
-scale built in, for use with small slider set for 76mm slide length (PSV test)
-Perspex setting gauge 126mm

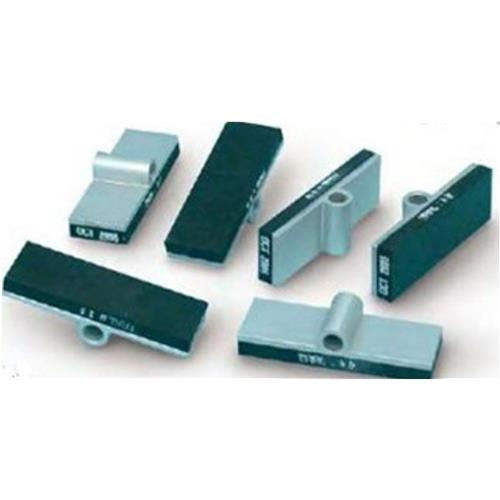

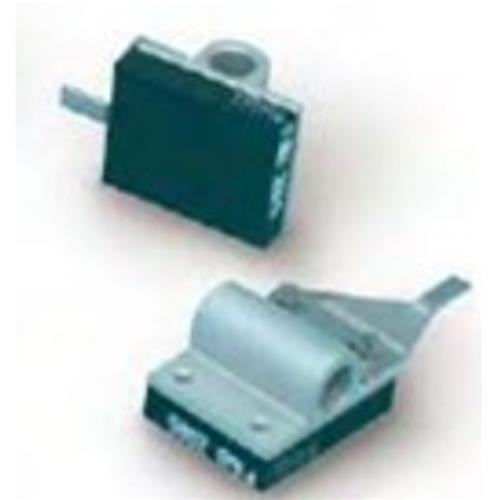

-TRRL3.0, Slider 55 Road surfaces. Customer can choose either type
-Brush, for removing unwanted dirt or grit from area to be tested
-Water spray bottle, for wetting surface to be tested
-Feet pads, for placing under levelling feet when on soft ground
-Tool set
