STANDARDS: EN 12390-6 , ASTM C496 , NF P18-408 , BS 1881:117, AS1012-10

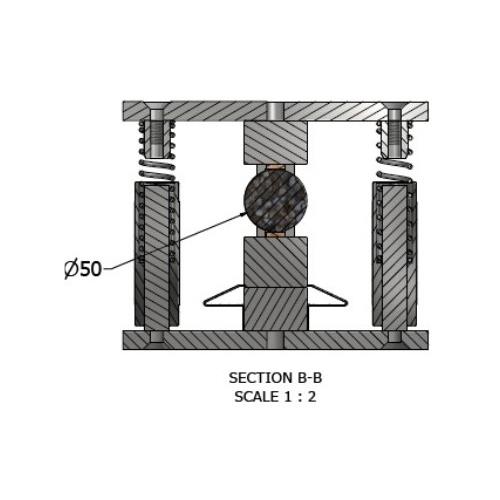

For cylindrical specimens from Ø 50×60 mm to Ø 160×320 mm.
This is the same as 101-C00XX-050 with addditional hardware for expanded scope

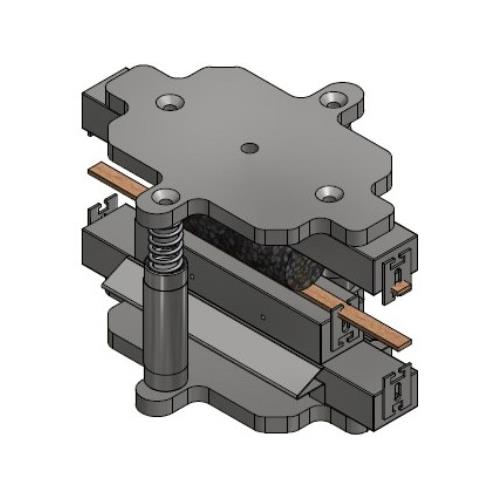

The base is equipped with flat springs centering and keeping in position the specimen.
Two columns with adjustable height sustain the upper plate by two springs.
Dimensions: 350x250xh264 mm
Weight: 13kg approx
