Auto Data Logging included
The 3.5 meter long Autographic Recording Travelling Beam Device is used to check for any irregularities in both concrete and bituminous road surfaces.
A sensing unit comprising a wheel connected to an indicator provides a magnification of 4:1.
Deviation of the surface from a straight-line is shown on a scale calibrated in increments of 2 mm in the 0-10 mm range and 5 mm increments in the 10-25 mm range.
A dye-marker is fitted which may be used to identify suspect areas. Outrigger wheels provide mobility on site.
The device is supplied as three sub-assemblies which are quickly assembled on site.
.

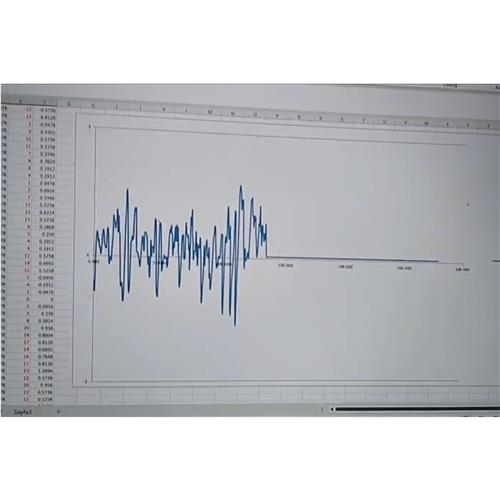

The Travelling Beam is supplied fitted with an autographic recorder providing a permanent record of the surface profile.

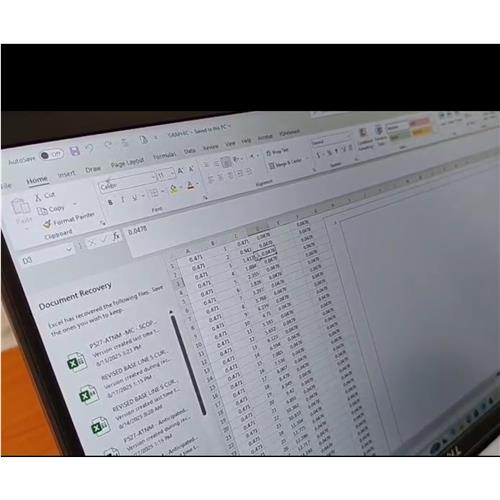

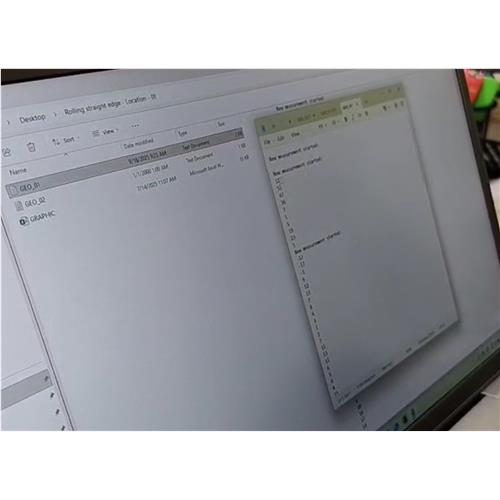

The recorded data can be transferred to the computer via sd card.
Optional accessory
101-B0169-039 – Wooden box should be ordered separately.
Transport dimensions
330x1800x600
Mass 55kg (excluded transport box)
