STANDARDS: EN 12697-23, EN 12697-12 , ASTM D6931, AASHTO T283, AS2891.13.1
ASTM D8225-19 IDEAL CT

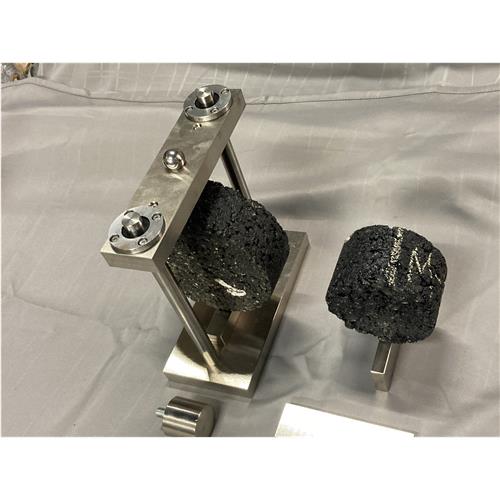

Used to measure the indirect tensile strength and the radial strain of a Marshall specimen Ø 4″ and 6″, where a vertical load is applied.

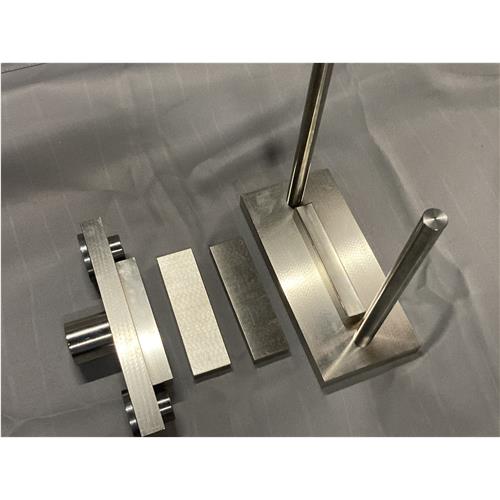

Supplied complete with two loading blocks.
Loading blocks are 12.7mm wide with 50mm radius for 4″
Loading blocks are 19mm wide with 75mm radius for 6″
Steel manufactured, plated against corrosion.
Dimensions: 210 x 100 x 270H mm
Weight: 8 kg approx.
