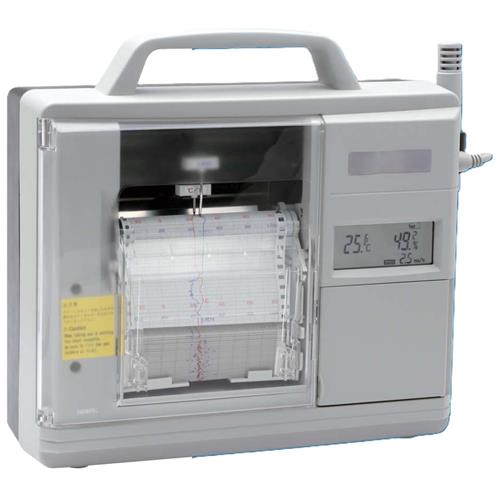

DIGITAL THERMOHYGROGRAPH
Displays and records temperature and humidity simultaneous-ly. With an electronic sensor of excellent responsiveness .
With an electronic sensor of excellent responsiveness, it has been given a compact body for indoor installations.
Best suited for general environmental measurement, and monitoring in greenhouses, storage warehouses, laboratories etc.
Measurement Methods
Temperature: Humidity:
Semiconductor Sensor High Molecular Electrostatic Capacity Sensor
Measurement Ranges Temperature: Humidity:
–Minus 20 – 50°C
–Minus 20 to 80°C (with sensor Extension Cable)
–20 to 90% RH (No Condensation)
–0 to 100% RH (with Sensor Extension Cable, No Condensation)
Display (LCD)
Resolution: Temperature: Humidity: Others: Dew Point :Absolute Humidity :LCD Display

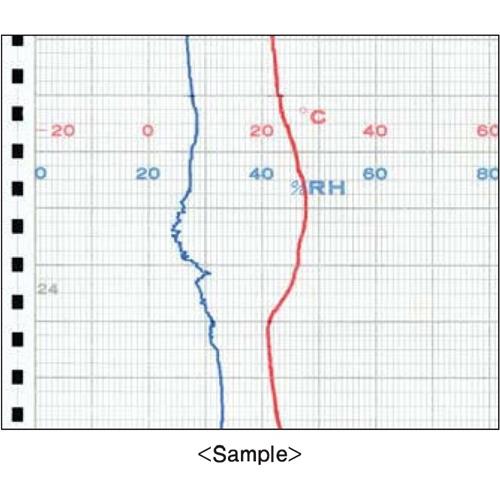

Chart Paper Working Width Feeding Feeding Accuracy
Z-Fold Type, 12m (length) 113mm (width) 100mm for record both Temperature and Humidty
Accuracy
Temperature: Humidity: 1 point 1 or 2 point
Recording Range User Selectable among with Switch
Temperature (1) -20 to 80°C (2) 0 to 50°C (3) ±10°C, ±25°C,
Environmental Conditions
Ambient Temperature Humidity
Minus 20 to 50°C/minus 90%RH (No Condensation)
Power Requirement Battery and AC Adaptor Inlet LR20, 1.5V x 4 pcs Input 9V 500mA
Dimensions
300 x 245 x 105mm 2.1kg
Included Accessories
LR20, 1.5V x 4 pcs 1 Pcs chart paper 1 pcs blue/red pen
