EN 196-1 – EN 12808-3 – EN 459 – DIN 18555-3 AS2350.12

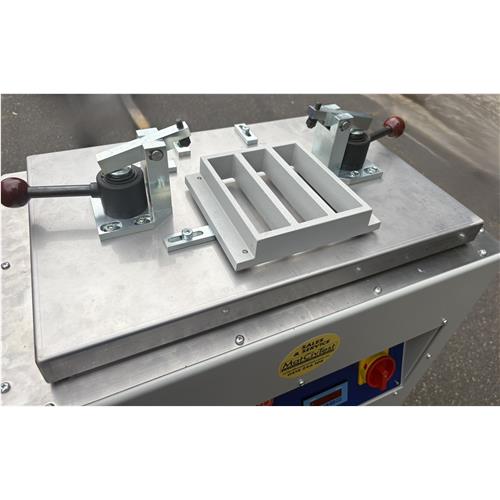

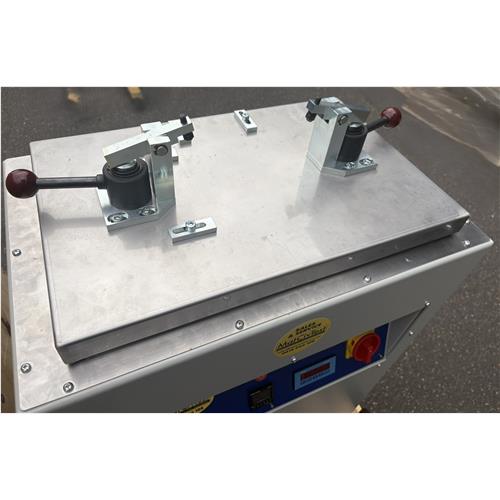

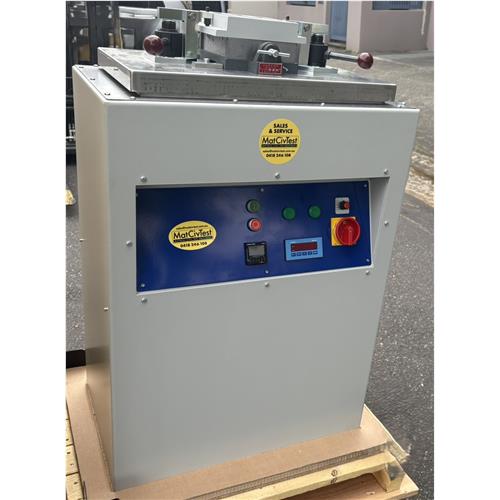

For compacting mortar prisms and other binder materials in triple moulds. Steel frame with free swinging vibration plate 550×350 mm with clamping device for one triple mould 101-E0054-025 or 101-E0054-016

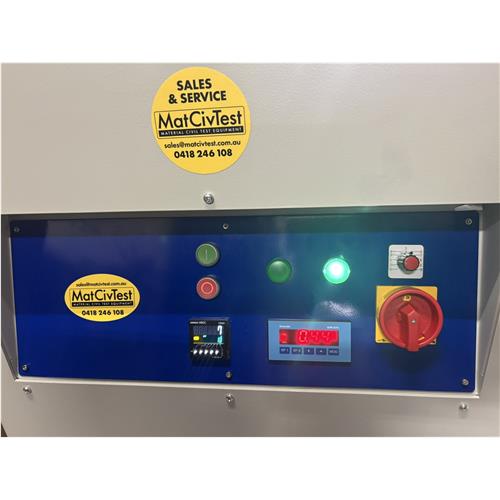

Driven by a vibrator with 3000 oscillations/min. with digital display of amplitude in mm.
A timer stops the vibrator after preselect time.
.
– For one triple mold (delivered without mold)
– With clamping device with quick-release lever
– With vibration width adjuster (0.4 – 0.9 mm)
– With vibration width display (digital)
– With timer (digital) (0-300 sec.) Factory setting = 120 sec.
– With stainless steel table top
– With attachment box
.
Table top 550 x 350 mm
.
> Vibrations 3000 rpm -(via magnetic vibrator)
> Max. load 30 kg
> Power consumption 1500 W
> Protection class IP 54
Dimensions approx.: 670 x 435 x 1150 mm
Weight approx.: 175 kg
Electric data: 230-240 V / 50/60 Hz
