Meets AS1012.17 Section 2 & 3
To measure radial deformation and diametrical extension of cylinder specimens 100×200 to 112.8×220 mm under compression stress, by determining the elastic modulus and Poisson’s ratio.

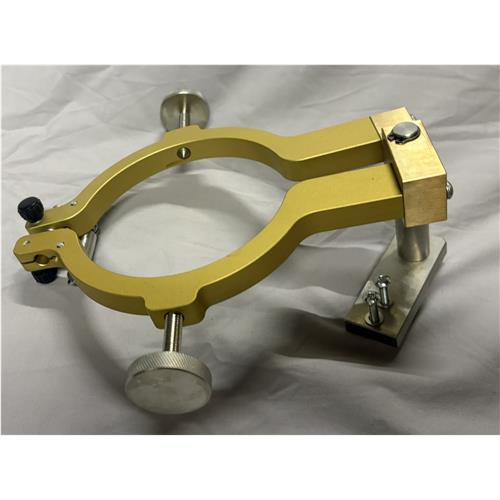

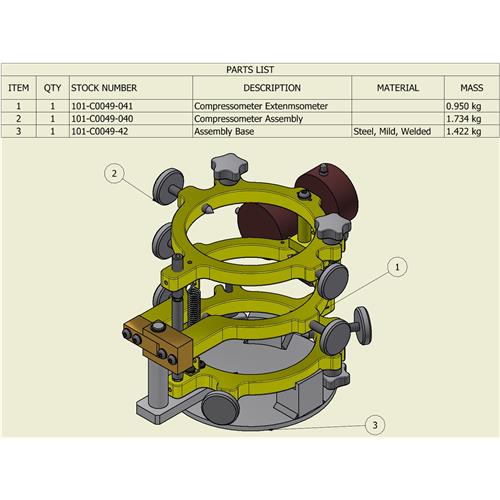

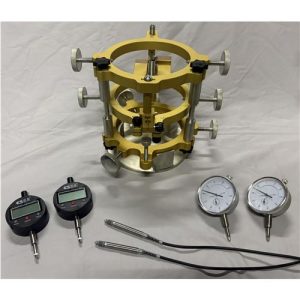

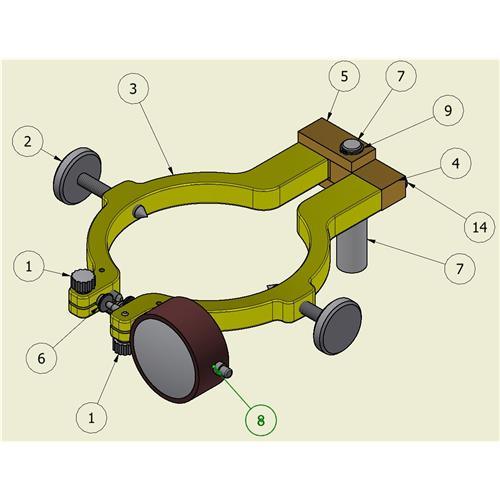

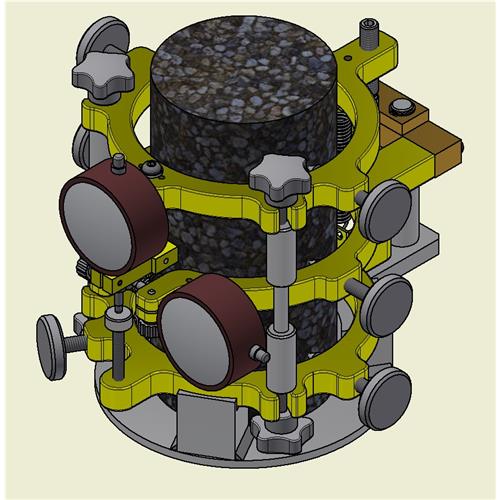

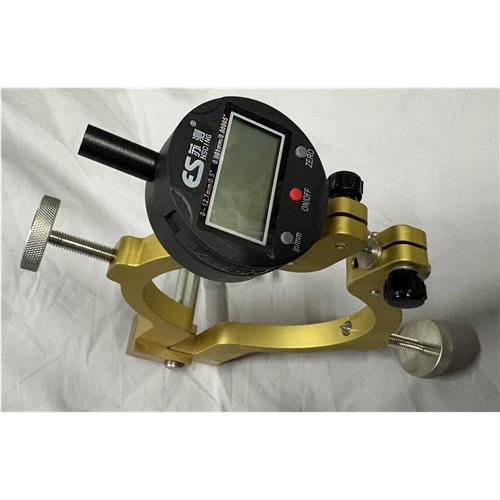

It consists of a central ring for the diametrical extension measure, to be fixed on the 101-C0049-40 compressometer.

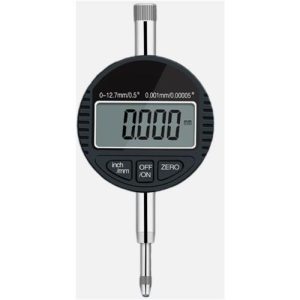

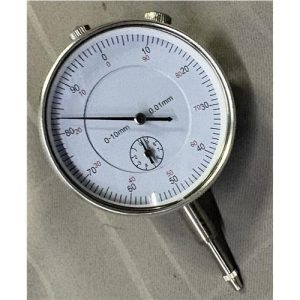

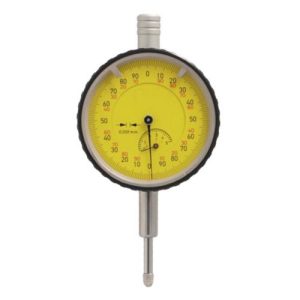

Supplied without dial gauges or linear strain transducers to be ordered separately (see accessories). One required 5 to 10mm travel with 8mm dia mounting
