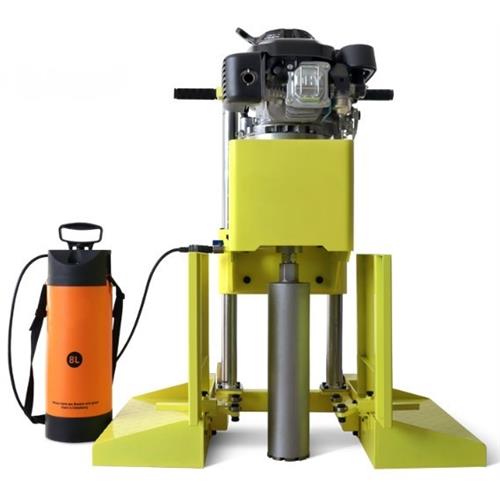

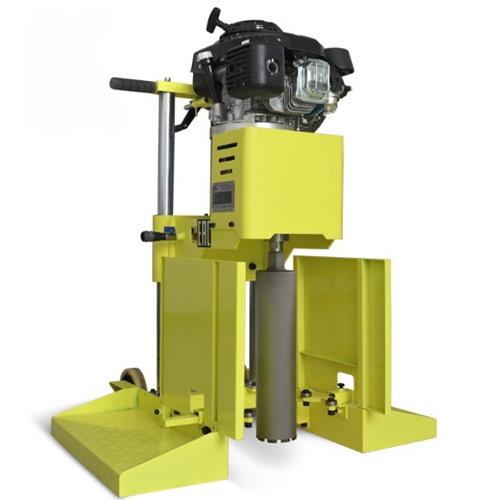

Robust, compact, portable and reliable equipment for taking core samples from roads or installing barrier posts and bollards.
The twin column drill stand with road bases makes it is stable to work; equipped with ball screws for easier and smoother lifting; and the wheels at the bottom make it easy to move.
TECHNICAL PARAMETERS

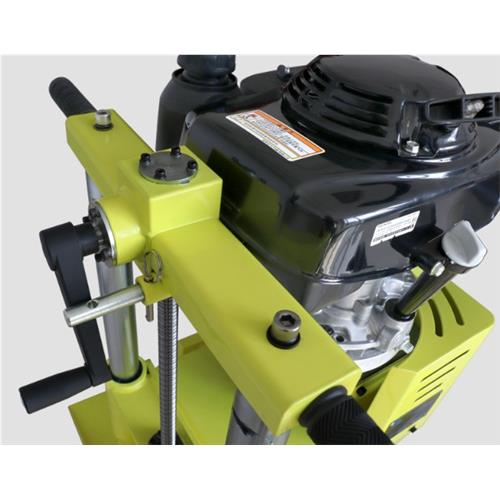

Motor: Honda GXV160
Power: 4.0 kW (5.5 HP) / 3600 rpm 4-stroke
RPM: 550-950rpm/min
Drilling stroke: 600mm
Drill bit diameter: 70-300mm
Drill bit connection: 1-1/4 -7UNC

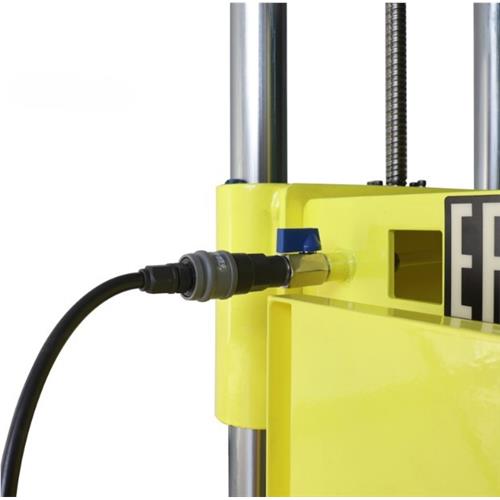

Water tank: 8L
Dimensions: 750*900*990mm
Weight: 85kg
