Standard: ASTM C-136, EN 933-2, ISO 3310-2
High capacity screening for large sample. Ideal for determination of crushed stone, sand and gravel.
Sample sare quickly processed into as many as seven separation gradings in three to five minutes. Typical batch sizes up to 28 litre or more depending on material type .
Mechanical clamping are easily secured in place by a few quick strokes. (The unit come with supporting backup clutch for tray for tensioning finer sizes screening).
–
Set consist of
-Instruction Manual
-Parts Description
-Machine Dust Cover
-Dust Tray
-Tool Kit Set
-Armortron Controller c/w Mounting Bracket
–
-Technical Specifications :
–
Tray Capacity 7 Trays Included Dust Tray
Screen Tray Dimension (mm) 870 (L) x 570 (W) x 1120 (H)
Power 240 V, 50/60 Hz, 1 ph, 750 W, 1hp 4.5 A, 1500 RPM
Approx. Weight 100 kg
–

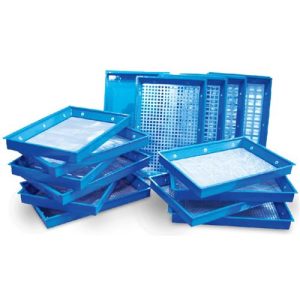

Supply without screen trays, need to order separately.
