STANDARDS: ASTM D5607, ISRM
Used to determine the strength and slope stability of rock size max 115×125 mm or cores max. diameter 102 mm, both in the field and in the laboratory.
The technique enables the engineer to select specimens of rock from exposed faces or bore holes, observe orientation of fault lines, then set and test the fault in the shear box.
.

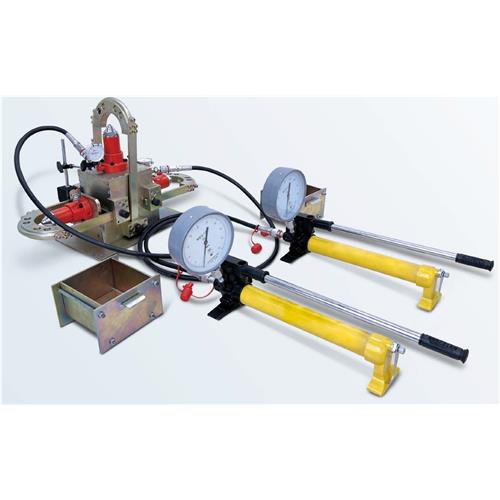

The apparatus consists of a diagonally split box assembly. The upper half incorporates a vertical ram for compressive loading, and the lower half, two horizontal rams for reversible shearing action.
The force applied by the horizontal ram is aligned with the centre of the box and the discontinuity in the specimen. Pressure is applied to the rams by means of hand-operated hydraulic pumps.
.
For ASTM compliance the kit needs to be upgraded to 4 Precision dial gauges 25 x 0.002mm or better to provide averaging of the movement across the frame system.

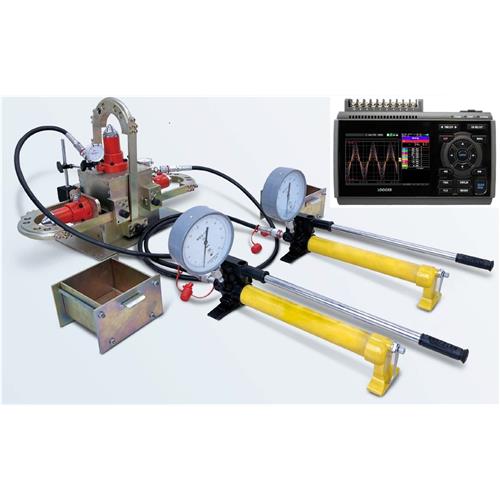

The system can be upgraded to be fully digital with data logger
.
Includes
****

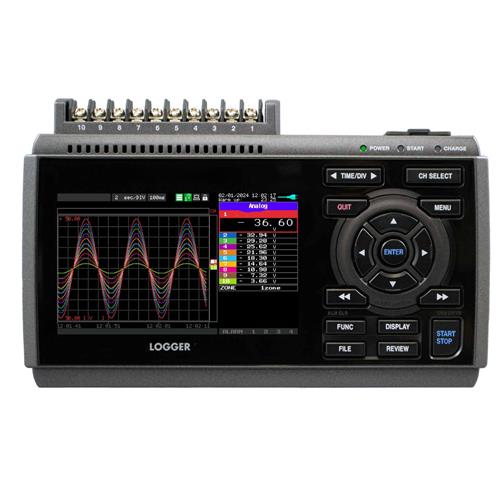

1 x 101-V0160-01 DATA LOGGER KIT, LAN, USB, 10 INPUT CHANNEL(S)
Complete Kit including power supplies, intergral carry case with 8 sockets for external plug connection

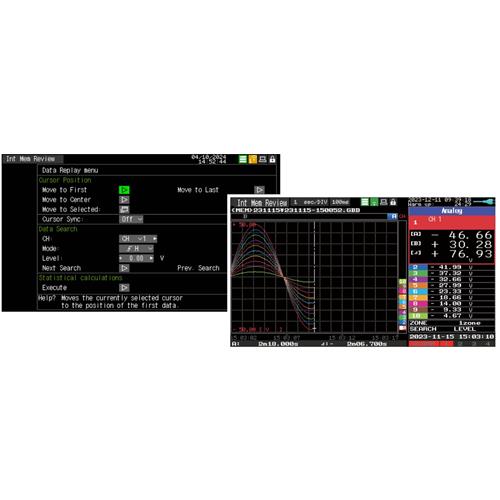

10-channel type data logger that supports all channel isolated and multi-function input.
It operates recording at intervals of 10ms to 1 hour.
Also an optional Wireless LAN unit enables wireless measurement and remote monitoring.
Supports the new Remote control service “ONLINE”, which makes your measuring more efficient Remote control and the data recording becomes easier by using web browser from anywhere you have an internet connection.
The recorded data can be backed up to a dedicated cloud server.
– GL remote control via web browser
– Simple user interface
– Easy setup (same menu design as the device)
– All communications are encrypted
.
Channels can input
Logic/Pulse
Temperature
Humidity
Electric current
Voltage
Other functions 21
AMP input

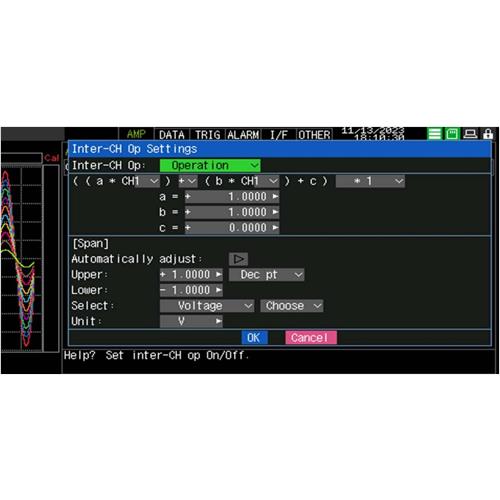

Analog channels are all isolated and multi-function inputs
Noise reduction, enable to set for each channel, moving average filter method Off, 2, 5, 10, 20, 40
Large capacity 8GB memory for long recording times
****
5 x 25mm Transducers and mounting hardware
