TRANSDUCER FOR CMOD TEST ON CONCRETE BEAMS CLIP GAUGE

TRANSDUCER FOR CMOD TEST ON CONCRETE BEAMS CLIP GAUGE

SKU : 101-C0028-005

Add to Quote

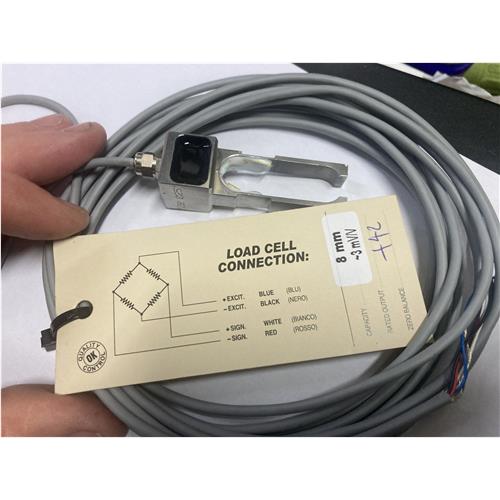

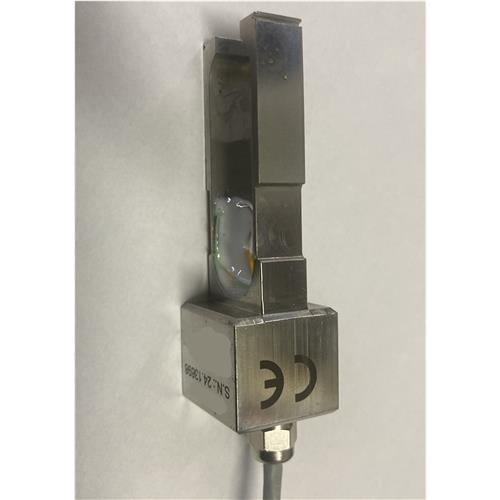

CLIP ON CMOD Gauge.
– Stainless steel construction (not Aluminium as per other brand)
– Total stroke 8 mm

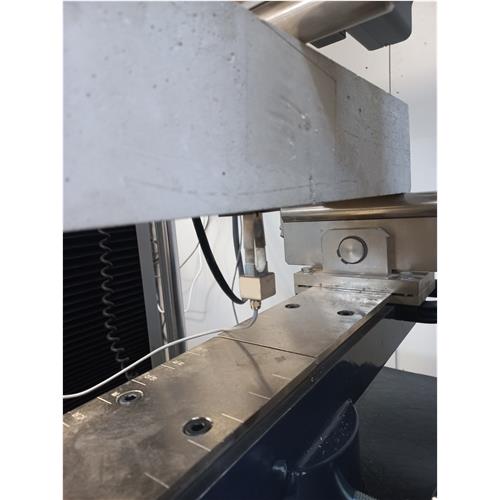

– Suitable for flexure test according to EN14651
– Operating principle: strain gauge, full bridge
– Bridge resistance: 350 ohm
– Output 2 mV/V +/- 0.1
– Excludes wedges for mounting on specimen Use 101-C0028-020

No additional information available.

101-C0028-005 TRANSDUCER CMOD

No videos available.

Product Accessories

101-C0028-020 - PLATE WEDGE FOR LOWER TRANSDUCER FIXING (24 PCS) CMOD

101-C0028-900 - TOOL TO ASSIST GLUING OF CMOD WEDGE PLATES (Pack of 5)
