Electronic Data Logging

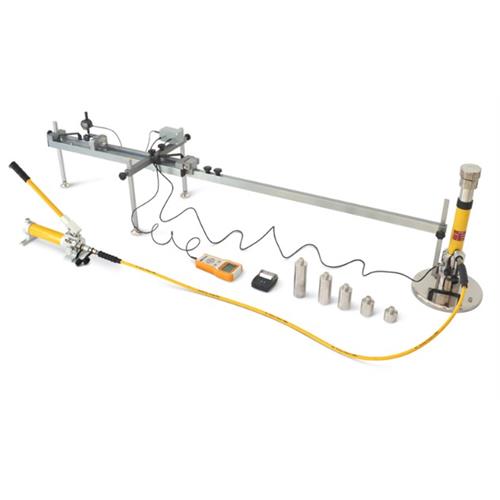

Static plate load tester is used to determine the settlement of subgrades under static load.

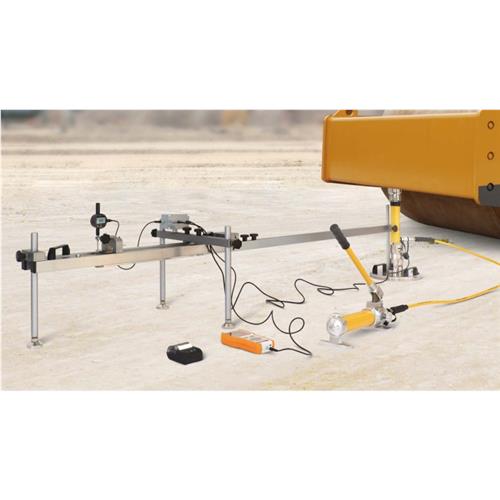

Through a circular loading plate and loading device, the ground is subjected to an initial loading and unloading cycle, followed by a second loading.
The stress s beneath the loading plate and the corresponding centre settlement value S of the loading plate are measured to calculate the deformation modulus Ev2 and the Ev2/Ev1 ratio.
.
Features:
-Equipped with sensors and components to ensure high accuracy.
-The display is backlit, ensuring visibility in various lighting conditions.
-Automatically calculated Ev1, Ev2, and the Ev2/Ev1 ratio, with graphical curve display.

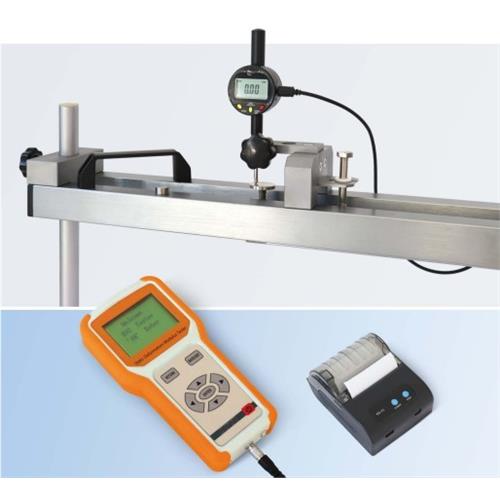

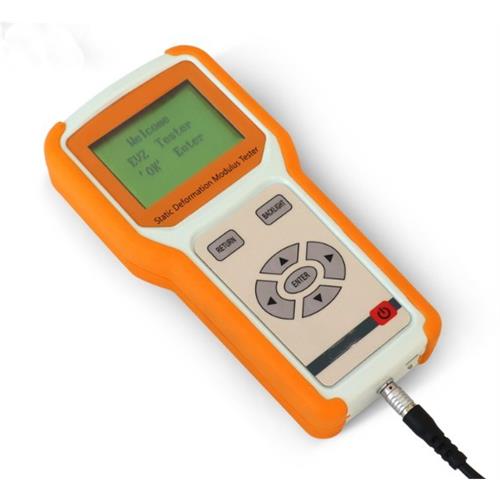

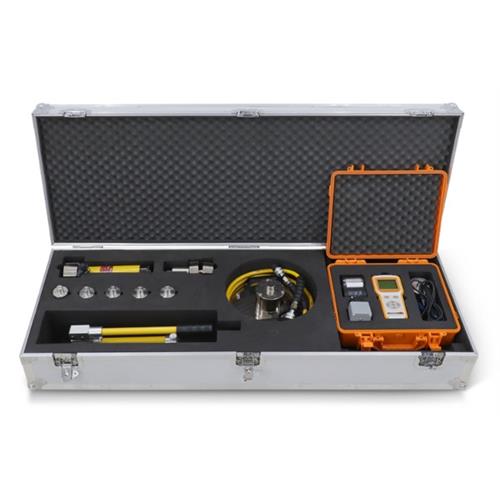

-Includes a handheld terminal and a compact Bluetooth printer for on-site printing.
-USB interface enables bidirectional data transfer for seamless computer connectivity.
.
Technical Specifications
Loading Plate Diameter 300 mm Thickness 25 mm

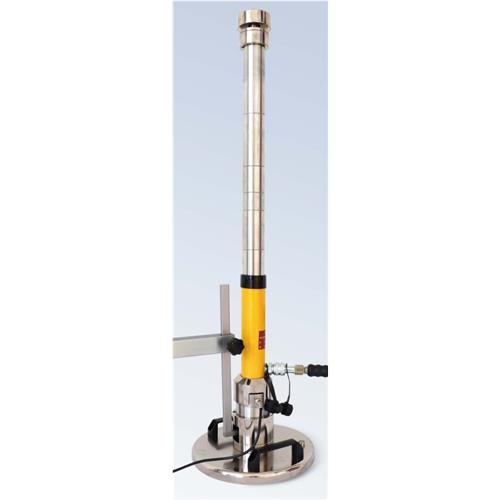

Loading Device Hydraulic pump for 100 kN load hose 2 m
Extension rods 1 x 40 mm, 1 x 90 mm,1 x 120 mm, 1 x 160mm, 2 x 60 mm
Upper pressure plate includes Magnetic ball joint
Settlement Measurement Support frame Tripod with telescopic and rotatable lever arm, adjustable base
Dimensions 2320 x 570 x 420 mm (L x W x H)
Weight 12.5 kg
Pressure Measurement Sensor range 100 kN
.
Components Includes pressure sensor and connecting fittings
Displacement Measurement Range 25 mm Accuracy 0.01 mm
Data Storage Capacity 200 test data sets
Print output Wireless Bluetooth printer
