Standard ASTM D1194, ASTM D1195, D1196;

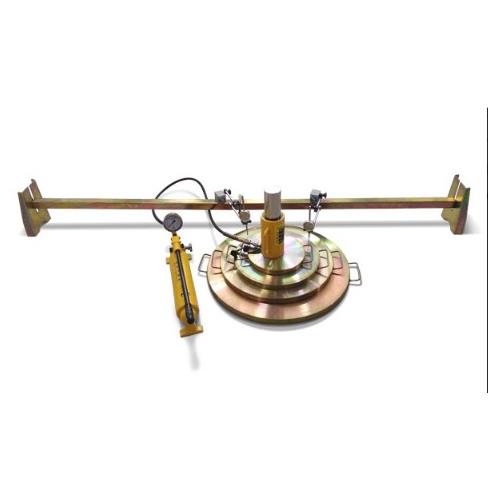

The plate bearing test is used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment
Also for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements
.
Specification
-Plates dia 762, 610, 458, 306mm
-Jack load capacity range 0-500 kN
-Jack Stroke 150 mm
-Measuring bridge span 3000 mm
-Hand pump rated pressure 70 Mpa
-Pressure measurement range 0-25 Mpa
-Displacement measurement range 0-30 mm
