Standard BS 1377; CNR No. 92 and No. 146; DIN18134

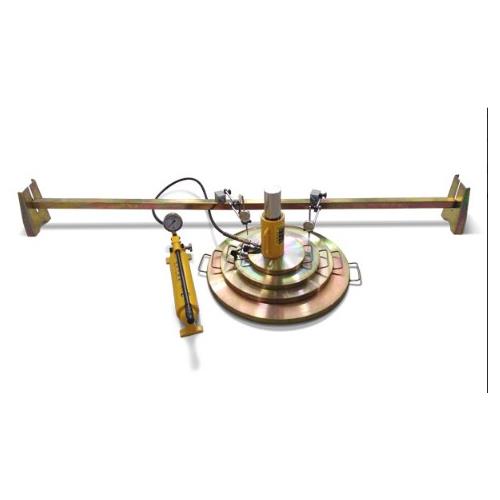

The plate bearing test is used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment
Also for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements
.
Specification
-Plates dia 300, 450, 600, 750mm
-Jack load capacity range 0-500 kN
-Jack Stroke 150 mm
-Measuring bridge span 3000 mm
-Hand pump rated pressure 70 Mpa
-Pressure measurement range 0-25 Mpa
-Displacement measurement range 0-30 mm
